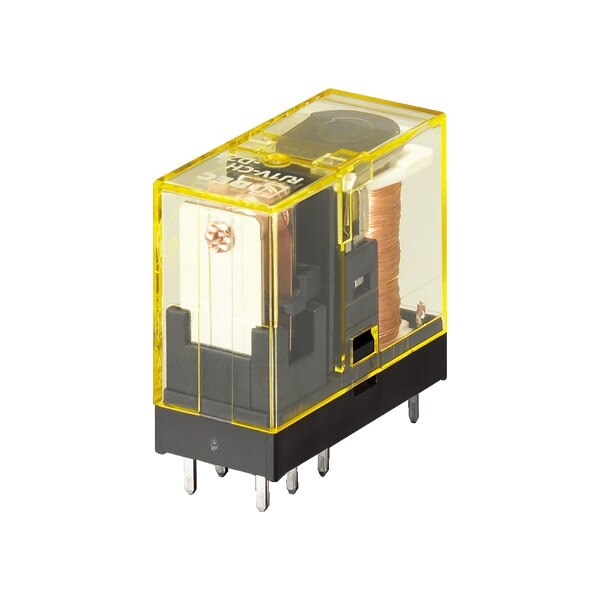

Product Code: RJ1V-CH-D100

Slim Line design with 16 A rated current
SPDT contact configuration for versatile use
High electrical life of 1,000,000 operations
Wide operational temp range: -40 to 70°C
CE, UL, RoHS compliant for safety standards

Specifications

Coil Voltage DC (V)	100
Contacts	SPDT
Dimensions (mm)	29W x 25.5H x 12.7D
No. of Poles	1
Operational Temperature Range (°C)	-40 to 70
Weight (g)	17
Minimum Mechanical Life	50,000,000
Operating Humidity	5 to 85%
Minimum Electrical Life	100,000
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	PCB Terminal
Contact Resistance (mO)	50
Product Type	Slim General Purpose Relay
Brand	IDEC
Coil Voltage	100 VDC
Contact Configuration	SPDT
Contact Material	Silver Nickel Alloy
Contact Resistance	50 MOhm
Degree of Protection	IP40
Electrical Life	1000000 Operations
Humidity	5-85%
Mechanical Life	50000000 Operations
Model	High Capacity
Number of Poles	1
Operating Time	15 ms
Operational Temperature	-40 to 70 deg C
Rated Current	16 A
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type	PCB
Vibration Resistance	10-55 Hz
Weight	17 g

Description

The IDEC RJ1V-CH-D100 is a robust PCB relay designed for high-capacity switching up to 16A at 110V DC. Its SPDT configuration offers versatile control options in a compact form factor. This environmentally conscious relay is free from hazardous substances such as lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. It meets stringent safety standards with UL recognition, CSA certification, and EN compliance, ensuring reliable performance in diverse applications.
