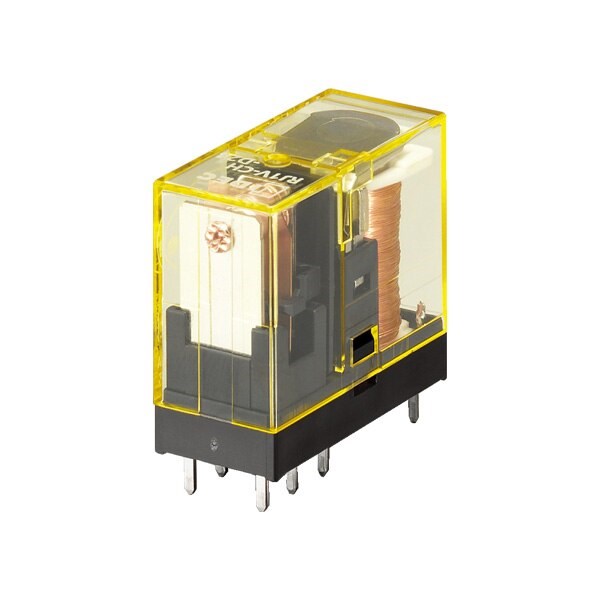

IDEC RJ1V-CH-A120 Slim General Purpose Relay SPDT 16A PCB Terminal

Product Code: RJ1V-CH-A120

  • Rated for 16 A current
  • SPDT contact configuration
  • PCB terminal type
  • Operates in -40 to 70°C range
  • CE, RoHS, UL508 approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts SPDT
Coil Voltage AC (V) 120
Dimensions (mm) 29W x 25.5H x 12.7D
No. of Poles 1
Operational Temperature Range (°C) -40 to 70
Weight (g) 17
Minimum Mechanical Life 30,000,000
Operating Humidity 5 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Slim General Purpose Relay
Brand IDEC
Coil Voltage 120 VAC
Contact Configuration SPDT
Contact Material Silver Nickel Alloy
Contact Resistance 50 MOhm
Degree of Protection IP40
Electrical Life 200000 Operations
Humidity 5-85%
Mechanical Life 3000000 Operations
Model High Capacity
Number of Poles 1
Operating Time 15 ms
Operational Temperature -40 to 70 deg C
Rated Current 16 A
Shock Resistance 1000 ms
Standards and Approvals CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 17 g

Description

The IDEC RJ1V-CH-A120 is a robust SPDT power relay designed for PCB mounting, offering a high switching capacity of 16A at 120V AC. This compact relay is environmentally conscious, free from lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. It meets industry standards with UL recognition, CSA certification, and EN compliance, ensuring reliability and safety in various applications.
