For professionals in the Australian electrical engineering and automation sectors, selecting the right components is crucial for ensuring system reliability and efficiency. When it comes to printed circuit boards (PCBs), this particular model offers a robust solution with its balanced technical specifications.

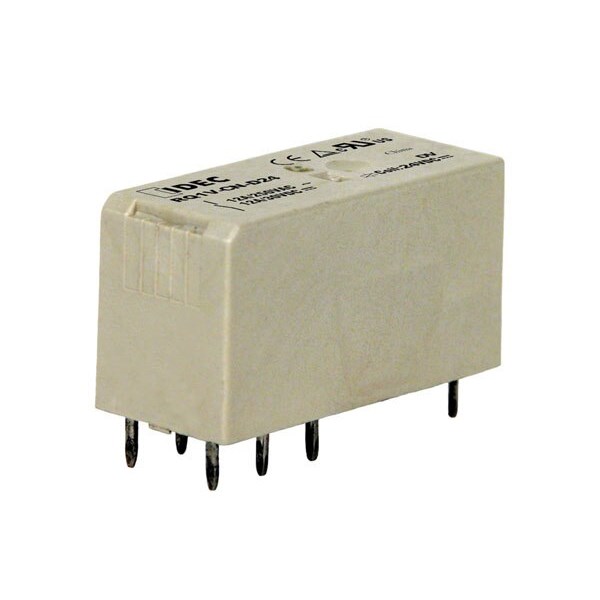

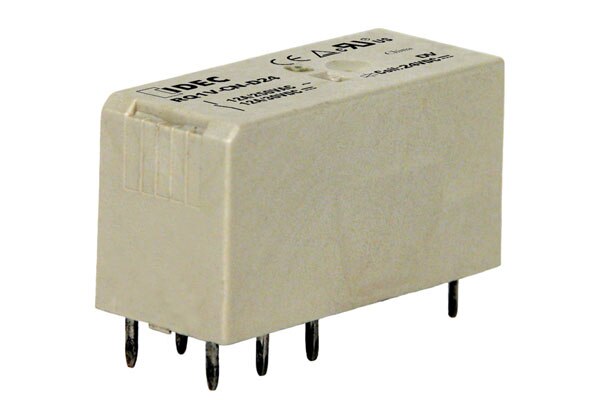

This PCB is designed to handle a rated current of up to 16 A, making it suitable for a variety of industrial applications. It operates with a coil voltage of 24 VDC, providing compatibility with standard DC power supplies commonly used in control systems. The single pole double throw (SPDT) contact configuration allows for versatile switching operations, catering to complex circuitry needs.
Measuring at 12.7 mm in width, 29 mm in height, and 15 mm in depth, this compact design ensures easy integration into existing systems without compromising on space constraints. Despite its small size, the PCB is engineered for durability and longevity. The contact material consists of silver nickel alloy which enhances conductivity while minimizing wear over time.
One of the standout features is its impressive electrical life span of 100,000 operations coupled with an extraordinary mechanical life reaching up to 10 million operations. This durability ensures that maintenance requirements are minimized over long-term use. Additionally, the low contact resistance of just 100 MOhm further underscores its efficiency by reducing energy loss during operation.
The device exhibits strong resilience against environmental factors as well; it can withstand vibrations ranging from 10-55 Hz and operate effectively within humidity levels between 45-85%. Its operational temperature range spans from -40°C to +85°C allowing it to perform reliably under extreme conditions found in both indoor and outdoor settings across Australia’s diverse climates.
In terms of safety and compliance, this PCB adheres to stringent standards including CE marking as well as cRuUS certification along with UL recognition under File E59804 ensuring that users can trust its performance across various regulatory environments.
Weighing only 15 grams this lightweight component does not add unnecessary bulk yet delivers substantial functionality making it an ideal choice when precision matters most without sacrificing quality or reliability typically expected by industry professionals today.
