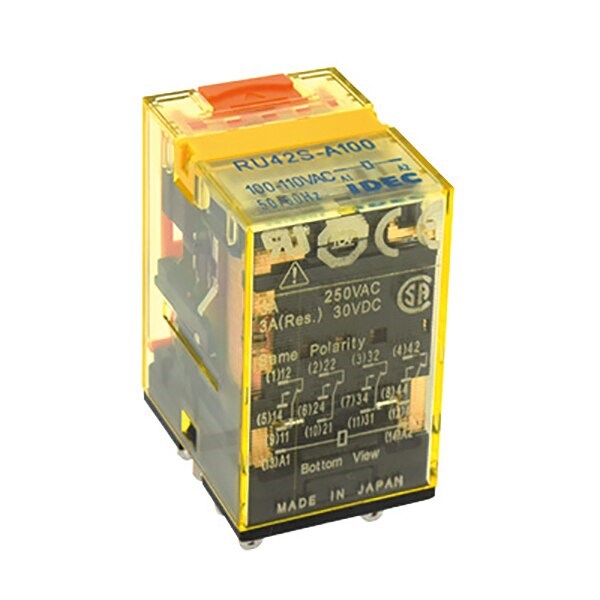

The Universal Relay is a robust and versatile component designed for industrial and commercial applications where reliability and precision are crucial. With its 4PDT (four-pole double-throw) contact configuration, this relay offers flexibility in switching circuits, making it suitable for complex control systems.
Operating at a coil voltage of 24 VDC, the relay efficiently handles a rated current of 6 A while maintaining a power range between 0.9 to 1 W. This balance ensures optimal performance without excessive energy consumption, which can be particularly beneficial in environments focused on energy efficiency.
The relay boasts remarkable durability with a mechanical life expectancy of up to 10 million operations. Such longevity makes it an ideal choice for high-demand settings where frequent cycling is expected. The silver contact material further enhances conductivity and minimizes resistance, ensuring consistent performance over time.
Installation is straightforward thanks to its solder terminal type, allowing secure connections that withstand environmental stresses. Speaking of resilience, the relay demonstrates impressive shock resistance at 150 ms and vibration resistance between 10-55 Hz, ensuring stable operation even in challenging conditions.
Humidity tolerance ranges from 5% to 85%, providing reliable functionality across diverse climates and operational environments. Compliance with CE, CSA, Lloyd Register, and UKCA standards underscores its adherence to international safety and quality regulations.
With an operating time of just 20 ms, this relay responds swiftly to input signals—an essential feature for applications requiring rapid actuation or precise timing sequences.
Weighing only 35 g, the compact design does not compromise on robustness or functionality but rather complements installations where space-saving is necessary without sacrificing performance integrity.
In summary, this Universal Relay combines efficiency with durability—a reliable component engineered for those who prioritize long-term operational excellence within their electrical systems.
