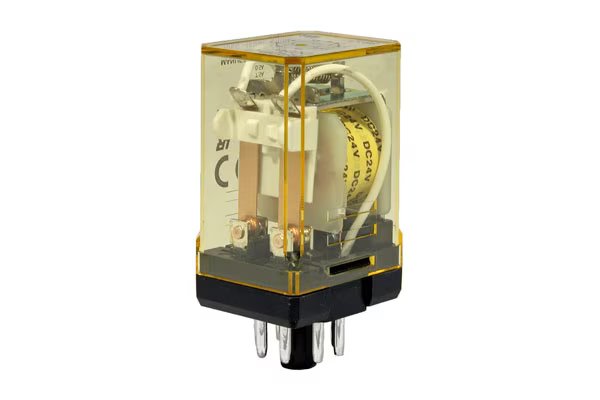

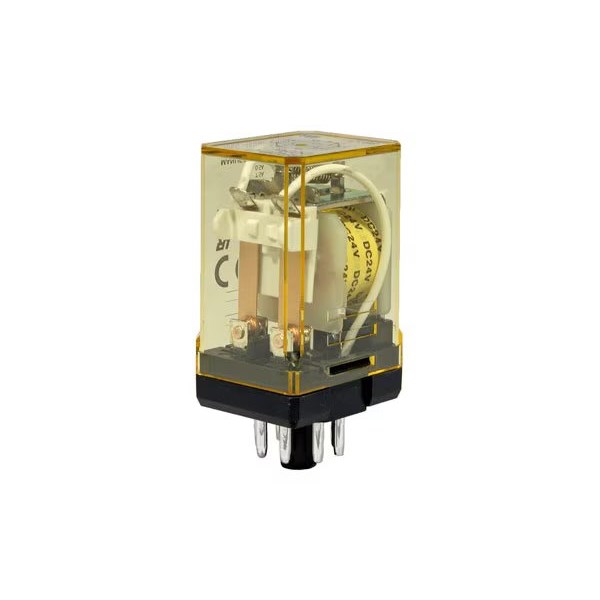

IDEC RR2P-UCAC24V Power Relay DPDT 24VAC Coil Pin Terminal

Product Code: RR2P-UCAC24V

  • Rated for 24 VAC power
  • DPDT contact configuration
  • Durable silver contacts
  • 200,000 electrical operations lifespan
  • CE and CSA certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts DPDT
Coil Voltage AC (V) 24
Operational Temperature Range (°C) -25 to 40
Weight (g) 90
Minimum Mechanical Life 10,000,000
Operating Humidity 5 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 100
Terminal Shape Pin Terminal
Contact Resistance (mO) 30
Product Type Power Relay
Brand IDEC
Contact Configuration DPDT
Contact Material Silver
Contact Resistance 30 MOhm
Electrical Life 200000 Operations
Humidity 5-85%
Mechanical Life 10000000 Operations
Model With Check Button
Operating Time 25 ms
Operational Temperature -25 to 40 deg C
Rated Voltage 24 VAC
Shock Resistance 100 ms
Standards and Approvals CE, CSA
Terminal Type Pin
Vibration Resistance 10-55 Hz
Weight 90 g

Description

The IDEC RR2P-UCAC24V Relay is engineered for high reliability and longevity. This relay comes with global certifications including UL, CSA, TUV, and CE on its octal models. It features a check button for test operations and an indicator light for status visualization. Versatile mounting options are available such as flange mounting, DIN socket, or panel mount socket to suit various installation requirements.
