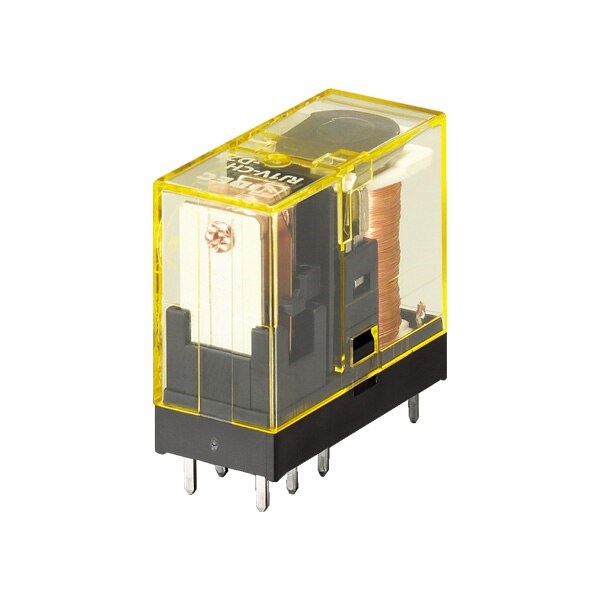

IDEC RJ1V-CH-D24 Slim General Purpose Relay SPDT 16A PCB Terminal

Product Code: RJ1V-CH-D24

  • Slim Line design with 16 A rated current
  • SPDT contact configuration for versatility
  • Durable silver nickel alloy contacts
  • Long electrical life: 1,000,000 operations
  • Wide temp range: -40 to 70°C, IP40 protection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 24
Contacts SPDT
Dimensions (mm) 29W x 25.5H x 12.7D
No. of Poles 1
Operational Temperature Range (°C) -40 to 70
Weight (g) 17
Minimum Mechanical Life 50,000,000
Operating Humidity 5 to 85%
Minimum Electrical Life 100,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Slim General Purpose Relay
Brand IDEC
Coil Voltage 24 VDC
Contact Configuration SPDT
Contact Material Silver Nickel Alloy
Contact Resistance 50 MOhm
Degree of Protection IP40
Electrical Life 1000000 Operations
Humidity 5-85%
Mechanical Life 50000000 Operations
Model High Capacity
Number of Poles 1
Operating Time 15 ms
Operational Temperature -40 to 70 deg C
Rated Current 16 A
Shock Resistance 1000 ms
Standards and Approvals CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 17 g

Description

The IDEC RJ1V-CH-D24 is a high-capacity, slim line SPDT relay designed for PCB mounting. It offers a large switching capacity of 24V DC at 16A, ensuring robust performance for power applications. This compact relay is environmentally conscious, free from hazardous substances such as lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. It meets industry standards with UL recognition, CSA certification, and EN compliance, making it a reliable choice for various electrical circuits.
