Product Code: RH1B-UAC48

48 VAC, 10 A rated for reliable performance
SPDT configuration with blade terminals
Silver Cadmium Oxide contacts ensure durability
200,000 electrical and 50M mechanical operations life
CE, CSA, EN, Lloyd Register & UL approved

Specifications

Coil Voltage AC (V)	48
Insulation Resistance (MO)	100
No. of Poles	1
Power Consumption (W)	0.8
Contacts	SPDT
Weight (g)	24
Minimum Mechanical Life	50,000,000
Operating Humidity	45 to 85%
Minimum Electrical Life	200,000
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	Blade Terminal
Contact Resistance (mO)	50
Product Type	Power Relay
Brand	IDEC
Contact Configuration	SPDT
Contact Material	Silver Cadmium Oxide
Contact Resistance	50 MOhm
Electrical Life	200000 Operations
Humidity	45-85%
Insulation Resistance	100 MOhm
Mechanical Life	50000000 Operations
Number of Poles	1
Operating Time	20 ms
Rated Current	10 A
Rated Power	0.8 W
Rated Voltage	48 VAC
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA, EN, Lloyd Register, UL
Terminal Type	Blade
Vibration Resistance	10-55 Hz
Weight	24 g

Description

The IDEC RH1B-UAC48 is a compact, high-capacity power relay designed for efficient operation in space-constrained environments. It features SPDT through 4PDT contacts with a 10A contact capacity, suitable for various applications. Its miniature design does not compromise on power, ensuring reliable performance while maximizing installation flexibility.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

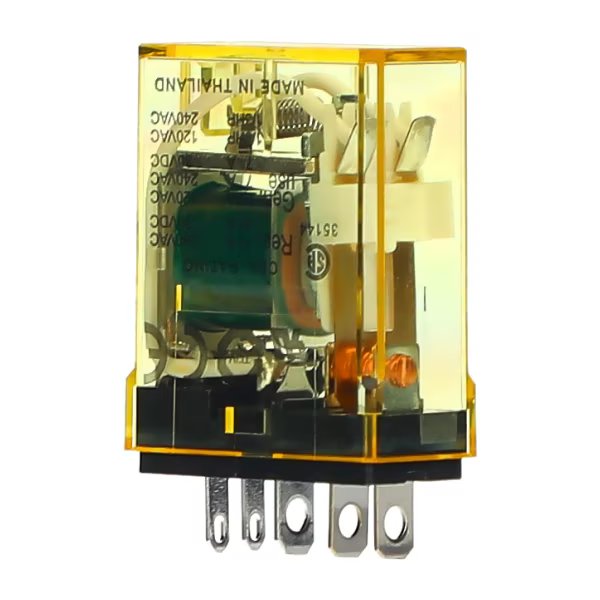

IDEC RH1B-UAC48 Power Relay SPDT 48VAC Coil 10A Blade Terminal
