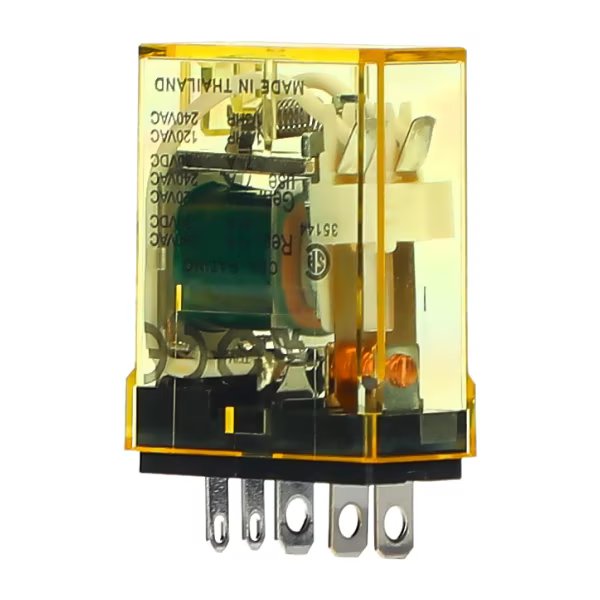

IDEC RH1B-UD-DC110V Power Relay SPDT 110VDC Coil 10A Blade Terminal

Product Code: RH1B-UD-DC110V

  • Rated for 110 VDC, 10 A operation
  • SPDT contact configuration
  • Fast 20 ms operating time
  • Durable silver cadmium oxide contacts
  • CE, CSA, EN, UL approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 1
Power Consumption (W) 0.8
Coil Voltage DC (V) 110
Contacts SPDT
Weight (g) 24
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration SPDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 1
Operating Time 20 ms
Rated Current 10 A
Rated Power 0.8 W
Rated Voltage 110 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, EN, Lloyd Register, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 24 g

Description

The IDEC RH1B-UD-DC110V is a compact, high-capacity power relay featuring SPDT through 4PDT with 10A contacts. Its miniature design allows for space-saving installation while providing robust switching capabilities. The integrated diode offers circuit protection, enhancing the relay's reliability in various applications. This power relay is ideal for those seeking efficient operation in a compact form factor.
