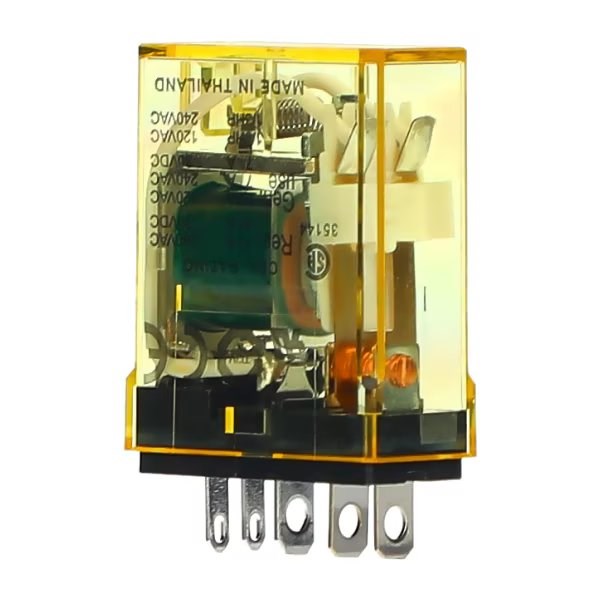

IDEC RH1B-UDC6 Power Relay SPDT 6VDC Coil 10A Blade Terminal

Product Code: RH1B-UDC6

  • Rated for 6 VDC, 10 A operation
  • Durable with 200k electrical operations
  • Fast 20 ms operating time
  • CE, CSA, EN, UL certified
  • Lightweight at just 24 g
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 1
Power Consumption (W) 0.8
Coil Voltage DC (V) 6
Contacts SPDT
Weight (g) 24
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration SPDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 1
Operating Time 20 ms
Rated Current 10 A
Rated Power 0.8 W
Rated Voltage 6 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, EN, Lloyd Register, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 24 g

Description

The IDEC RH1B-UDC6 is a compact, high-capacity relay designed for efficient operation in power applications. It features SPDT through 4PDT contacts with a 10A rating, suitable for various switching needs. Its miniature size allows for space-saving installation without compromising on performance. This relay operates on a 6V DC coil voltage, providing reliable control in your electrical circuits.
