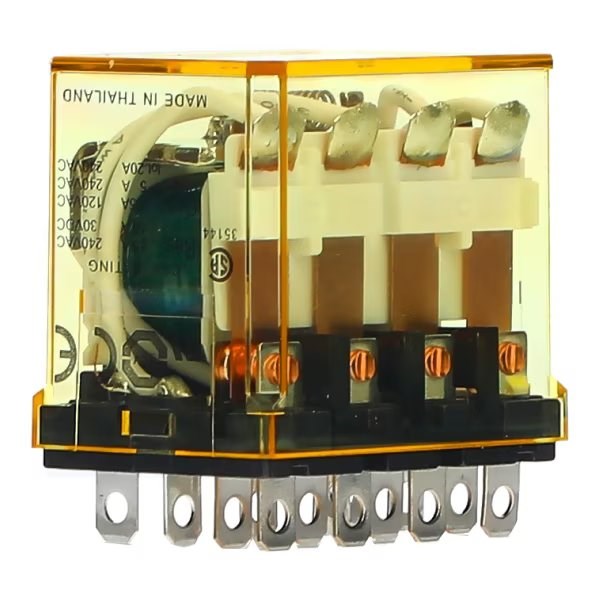

When selecting a power relay for industrial or commercial applications, understanding the technical specifications is crucial. This power relay offers reliable performance with its robust design and impressive electrical characteristics.
Operating at a rated voltage of 24 VAC and a rated current of 10 A, this relay provides a rated power of 1.5 W, making it suitable for various medium-duty applications. The contact configuration is 4PDT (Four-Pole Double-Throw), providing versatility in switching operations.
The blade terminal type ensures easy installation and connection to existing systems. With an operating time of just 25 ms, this relay delivers prompt response times essential in dynamic environments.
Constructed with silver cadmium oxide contacts, the relay guarantees efficient conductivity and durability over time. It boasts an electrical life of up to 200,000 operations and an impressive mechanical life span reaching up to 50 million operations, ensuring long-term reliability.
Insulation resistance stands at 100 MOhm while contact resistance is maintained at a low level of 50 MOhm for optimal performance. The shock resistance rating is specified at 1000 ms, providing resilience against physical impacts. Additionally, it has vibration resistance ranging from 10-55 Hz which ensures stable operation even in environments subject to mechanical vibrations.
This device operates effectively within humidity levels between 45% and 85%, accommodating various environmental conditions without compromising functionality.
Adhering to international standards such as CE, CSA, EN Lloyd Register and UL approvals underscores its compliance with industry safety regulations and quality benchmarks globally recognized by professionals across sectors.
Weighing only 74 g this lightweight component can be easily integrated into your system without adding significant load or complexity during installation processes—an important consideration when managing space constraints within control panels or enclosures where every gram counts towards efficiency goals set forth by engineers today who demand both precision engineering coupled alongside practical usability features inherent throughout product lifecycle stages encountered daily on job sites worldwide alike!
