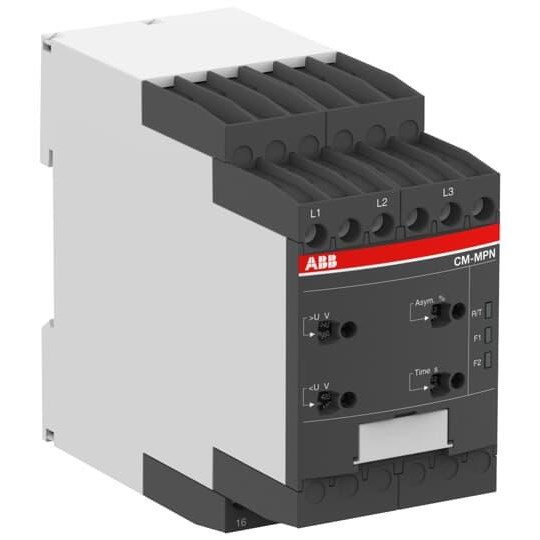

ABB CM-MPN.72S Three-Phase Monitoring Relay 3 530-820VAC (L-L) 530-820VAC 2 x 1CO or 1 x 2CO 4A

Product Code: CM-MPN.72S

  • Measures 530-820 VAC, ideal for high voltage
  • Automatic phase sequence correction & monitoring
  • Handles over/undervoltage and phase failures
  • Durable with 100k electrical operations lifespan
  • Compact DIN rail mount, screw terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2 x 1CO or 1 x 2CO (SPDT)
Measuring Range AC (V) Overvoltage: 3 x 690-820, Undervoltage: 3 x 530-660
Pollution Degree 3
Rated Control Supply Voltage AC (V) 3 x 530-820
Rated Current (A) 4
Rated Frequency (Hz) 50/60
No. of Phases 3
Operational Temperature Range (°C) -25 to +60
Timing Range Start-up delay: 200ms, Tripping delay: 0s or 0.1-30s (ON or OFF)
Duty Time 100%
Product Type Three-Phase Monitoring Relay
Brand ABB
Contact Configuration (2) 1CO or (1) 2CO
Contact Form (2) 1CO or (1) 2CO
Degree of Pollution IP3
Degree of Protection IP20, IP50
Electrical Durability 100000 Operations
Function Automatic Phase Sequence Correction, Over and Undervoltage Monitoring, Phase Failure Detection, Phase Unbalance Detection, Phase Sequence Monitoring
Height 85.6 mm
Measuring Range 530-820 VAC (L-L)
Mechanical Durability 30000000 Operations
Mounting Type 35 x 7.5 mm DIN Rail
Operating Time 0.1-30 s
Operational Temperature -25 to 60 deg C
Output Type (2) 1CO, (1) 2CO
Overvoltage Category III
Phase 3
Rated Current 4 A
Rated Frequency 50/60 Hz
Rated Voltage 530-820 VAC
Standards and Approvals CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508
Terminal Type Screw
Weight 0.224 kg
Width 45 mm

Description

This three-phase monitoring relay is designed to monitor all phase parameters, including over/undervoltage, phase unbalance, and phase failure. It has a measuring range of 530 to 820 V AC (L-L) and operates with a rated control supply voltage within the same range. The relay offers either 2 x 1 CO or 1 x 2 CO output options. Additionally, it features double-chamber cage connection terminals for secure connections.
