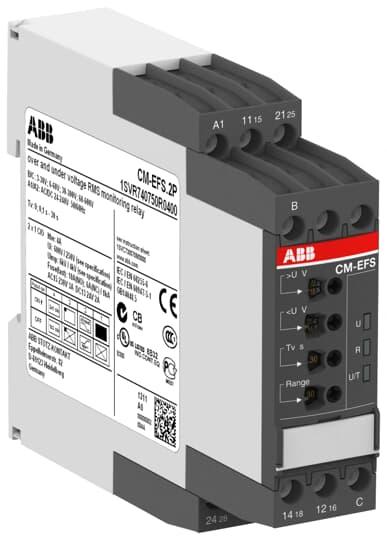

ABB CM-EFS.2P VOLTAGE MONITORING RELAY CONTROL 24 - 240 V AC/DC 2CO PUSH IN TERMINALS

Product Code: CM-EFS.2P

The Voltage Monitoring Relay is designed for both over- and undervoltage monitoring. It uses a RMS measuring principle to measure DC and AC voltages in four different ranges: 3-30 V, 6-60 V, 30-300 V, and 60-600 V. This relay operates with a rated control supply voltage of 24 - 240 V AC/DC. It has two CO (SPDT) outputs with contacts rated at 250 V / 4 A. The relay features push-in terminals for easy installation. It offers window monitoring for both over- and undervoltage conditions, allowing you to select ON or OFF delay. It can operate in either an open or closed circuit configuration and can be used with or without a latching function. The tripping delay and start-up delay of the relay are adjustable within a range of instantaneous to 30 seconds (0, 0.1-30 s).

Technical Specifications

Brand ABB
Contacts 2 x 1CO or 1 x 2CO (SPDT)
Degree of Protection IP50 (Housing), IP20 (Terminals)
Duty Time 100%
Function Over and Undervoltage monitoring
LED Colour U/T: Green, U: Red, R: Yellow
Measuring Range AC/DC (V) 3-30, 6-60, 30-300, 60-600
Mounting Type DIN Rail
No. of Phases 1
Operational Temperature Range (°C) -20 to +60
Overvoltage Category III
Pollution Degree 3
Rated Control Supply Voltage AC/DC (V) 24 - 240
Rated Current (A) 4
Rated Frequency (Hz) 50/60
Short-Circuit Protective Device O/P Circuit NC - F Type Fuses 6 A, O/P Circuit NO - F Type Fuses 10 A
Terminal Type Push-in
Timing Range Tripping delay: 0s or 0.1-30s (ON or OFF)
