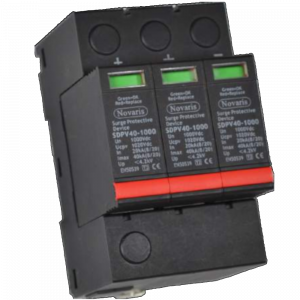

Novaris SDPV-50-1500-M Photovoltaic Surge Diverter 50 kA (L-L) 50 kA (L-PE) 1500VDC 50 kA 2 Ph

Product Code: SDPV-50-1500-M

  • Suitable for 1500 VDC systems
  • High protection with IP20 rating
  • Operates from -40 to 85°C
  • Mounts on TS35 DIN Rail
  • Complies with UL1449 & IEC61643 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Photovoltaic Surge Diverter
Brand NOVARIS
Base Type 90 Mounting
Connection Type Shunt
Degree of Protection IP20
Fuse Rating 125 A
Humidity 5-95%
Material Thermoplastic
Mounting Type TS35 DIN Rail
Operational Temperature -40 to 85 deg C
Phase 2
Rated Current 50 kA (L-L), 50 kA (L-PE)
Rated Voltage 1500 VDC
Standards and Approvals UL1449-4th, IEC61643-31
Terminal Capacity 35 sq-mm Power, 1.5 sq-mm Alarm
