ABB REV11T114N Reversing Motor Starter 11kW 250-500VAC/DC 45A

Product Code: REV11T114N

  • Suitable for 250-500 VAC/VDC systems
  • Handles up to 45 A current
  • Operates at 50/60 Hz frequency
  • IP20 protection rating for safety
  • Screw terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 690
Rated Control Circuit Voltage AC/DC (V) 250 - 500
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current AC-3 415V (A) 26
Rated Operational Power AC-3 415V (kW) 11
Rated Operational Voltage AC (V) 690
Contacts 3NO (Main Contacts)
Rated Operational Current AC-1 690V (A) 45
Product Type Reversing Motor Starter
Brand ABB
Contact Configuration 3NO
Degree of Protection IP20
Rated Current 45 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Power 11 kW
Rated Voltage 250-500 VAC/VDC
Terminal Type Screw

Description

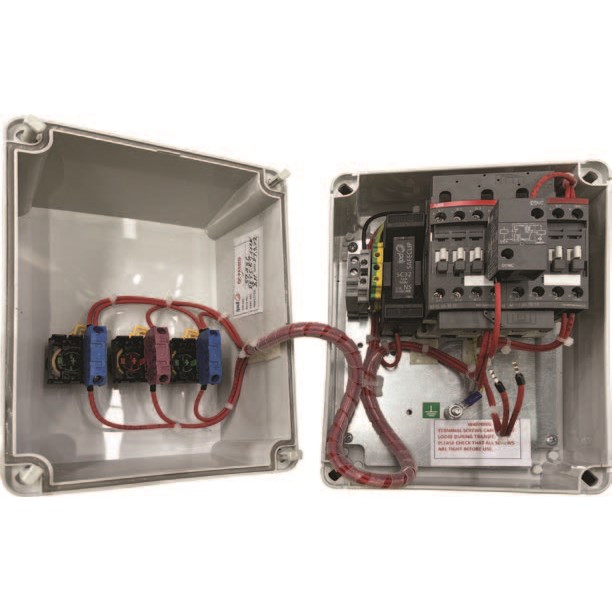

The reversing starter is a product that includes two contactors. These contactors have a rated operational current of 45A at 690V (AC1) and 26A at 415V (AC-3). The starter has a power rating of 11kW and is compatible with control supply voltages ranging from 250V to 500V AC/DC. It also features a mechanical and electrical interlock set, specifically designed for the interlocking of two AF contactors. Please note that an overload relay is not included with this product. Additionally, the reversing starter has an IP65 rating, indicating its level of protection against dust and water ingress.
