ABB REV22T113N Reversing Motor Starter 22kW 110-250VAC 53A

Product Code: REV22T113N

  • Suitable for 110-250 VAC applications
  • Handles up to 53 A current
  • IP65 protection against dust and water
  • Supports motor power up to 22 kW
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Control Circuit Voltage AC (V) 110 - 250
Rated Operational Current AC-3 415V (A) 53
Rated Operational Power AC-3 400V (kW) 22
Product Type Reversing Motor Starter
Brand ABB
Degree of Protection IP65
Rated Current 53 A
Rated Power 22 kW
Rated Voltage 110-250 VAC

Description

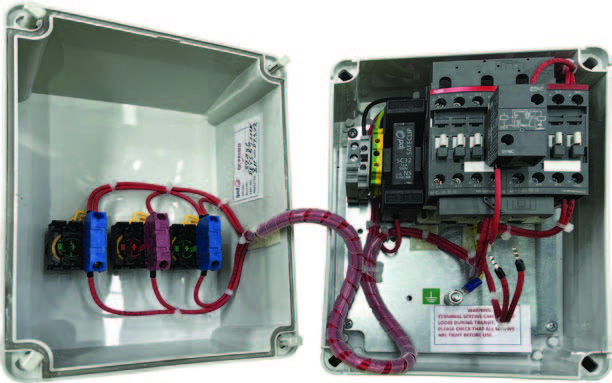

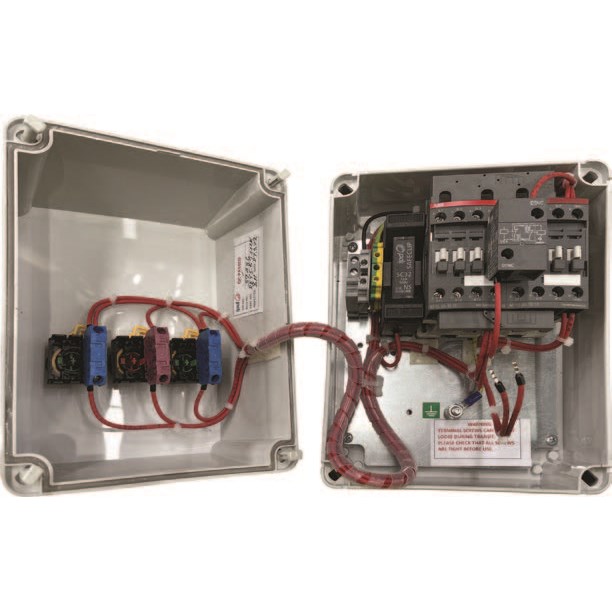

The reversing starter is a product that includes two contactors. The rated operational current for AC1 is 100A at 690V and for AC-3 is 53A at 415V. It has a power rating of 22kW and a control supply voltage range of 100-250V AC/DC. The starter features a mechanical and electrical interlock set specifically designed for the interlocking of two AF contactors. Please note that an overload relay is not included with this product. Additionally, the starter has an IP65 rating, indicating its level of protection against dust and water ingress.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
