ABB REV4T114N Reversing Motor Starter 4kW 690VAC 9A

Product Code: REV4T114N

  • Suitable for 690 VAC systems
  • Handles up to 9 A current
  • Operates at 50/60 Hz frequency
  • Features IP20 protection rating
  • Equipped with 3NO contacts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 690
Rated Control Circuit Voltage AC/DC (V) 250 - 500
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current AC-3 415V (A) 9
Rated Operational Power AC-3 415V (kW) 4
Rated Operational Voltage AC (V) 690
Auxiliary Contacts 1NO
Contacts 3NO (Main Contacts)
Rated Operational Current AC-1 690V (A) 25
Product Type Reversing Motor Starter
Brand ABB
Contact Configuration 3NO
Degree of Protection IP20
Rated Current 9 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Power 4 kW
Rated Voltage 690 VAC
Terminal Type Screw

Description

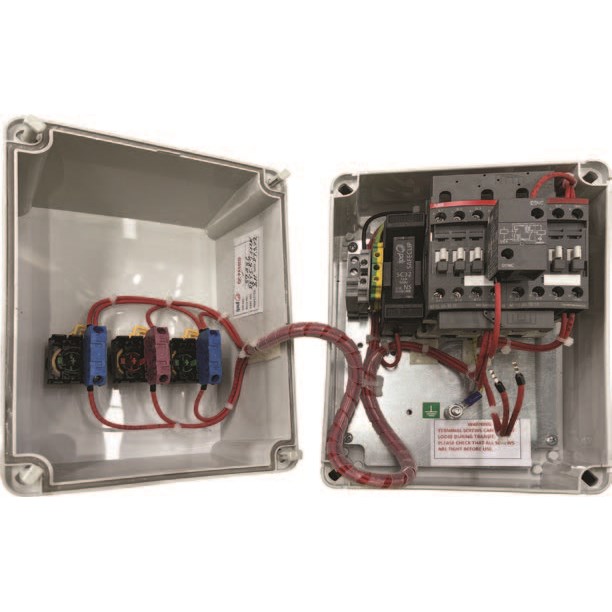

The reversing starter is a product that includes two contactors. These contactors have a rated operational current of 20A at 690V (AC1) and 9A at 415V (AC-3). The reversing starter has a power rating of 4kW and a rated control supply voltage of 250-500V AC/DC. It also features a mechanical and electrical interlock set for the interlocking of the two AF contactors. Please note that an overload relay is not included with this product. Additionally, the reversing starter has an IP65 rating, indicating its level of protection against dust and water ingress.
