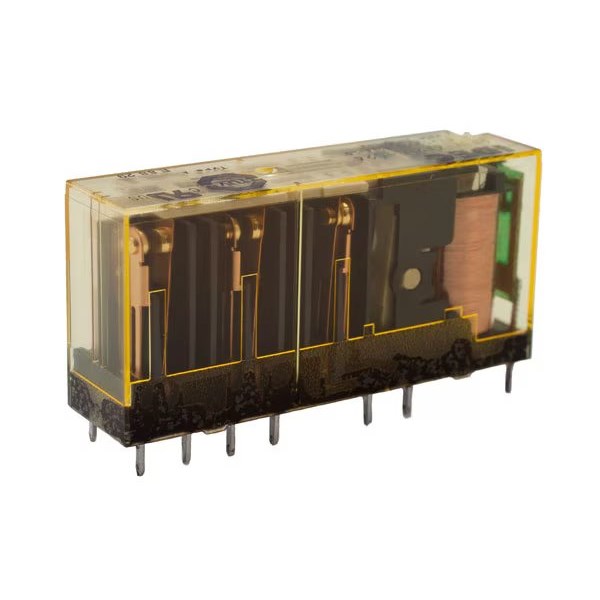

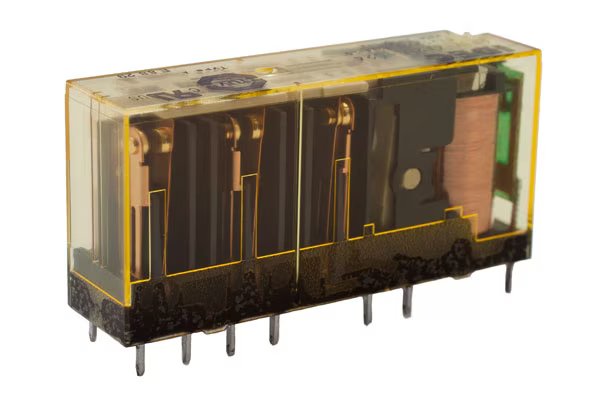

IDEC RF1V-3A1BL-D12 Force Guided Relay 3NO-1NC 12VDC Coil 4-Pole 6A

Product Code: RF1V-3A1BL-D12

  • Force guided relay with 3NO+1NC contacts
  • Compact size: 40x24x13 mm, weight 20 g
  • High mechanical life of 10 million ops
  • Wide temp. range: -40 to 85°C
  • Compliant with CSA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 12
Dimensions (mm) 40W x 24H x 13D
Insulation Resistance (MO) 1000
No. of Poles 4
Operational Temperature Range (°C) -40 to 85
Power Consumption (W) 0.36
Rated Current (mA) 30
Maximum Switching Current (A) 6
Contact Resistance (mO) 100
Weight (g) 20
No. of Normally-open Contacts 3
No. of Normally-closed Contacts 1
Minimum Mechanical Life 10,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Maximum Switching Capacity AC (VA) 1500
Maximum Switching Capacity DC (W) 180
Resistance to Shock (m/s²) 200
Maximum Switching Capacity DC (V) 30
Maximum Switching Capacity AC (V) 250
Product Type Force Guided Relay
Brand IDEC
Coil Voltage 12 VDC
Contact Configuration 3NO+1NC
Contact Resistance 100 MOhm
Depth 13 mm
Height 24 mm
Humidity 5-85%
Insulation Resistance 1000 MOhm
Mechanical Life 10000000 Operations
Number of Poles 4
Operational Temperature -40 to 85 deg C
Rated Current 30 mA
Rated Power 0.36 W
Shock Resistance 200 ms
Standards and Approvals CSA C22.2 14, CSA File 253350, UL Recognized File E55996, UL508
Vibration Resistance 10-55 Hz
Weight 20 g
Width 40 mm

Description

The IDEC RF1V-3A1BL-D12 is a force-guided relay with an LED indicator, designed for safety-critical applications. It features 3 Normally Open (NO) and 1 Normally Closed (NC) contacts, ensuring reliable switching. This relay is EN50205 Type A TÜV approved, signifying adherence to stringent safety standards. For secure and easy installation, it comes with both finger-safe DIN rail mount and PC board mount sockets.
