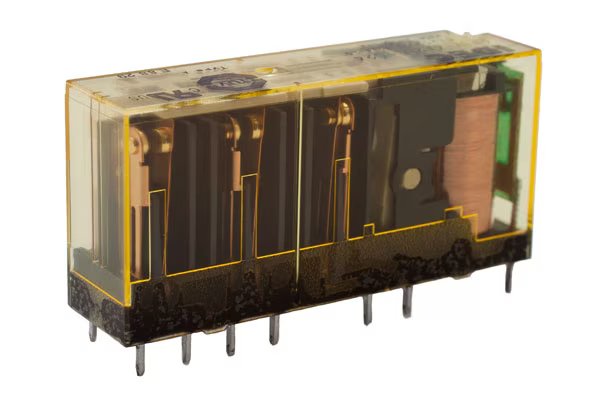

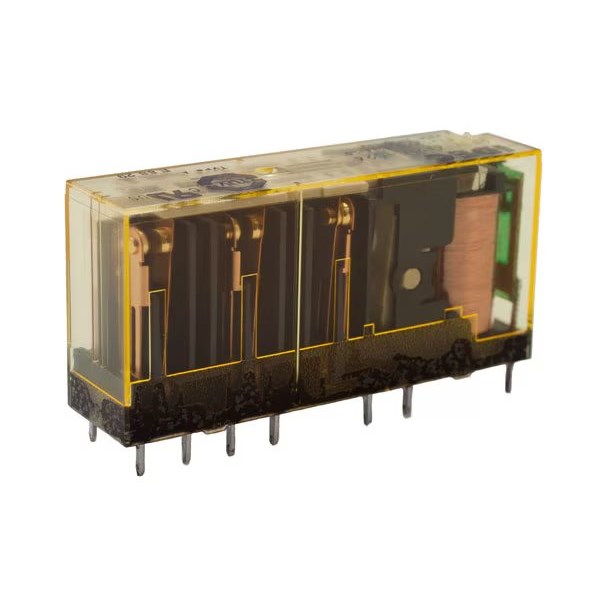

IDEC RF1V-3A1B-D24 Force Guided Relay 3NO-1NC 24VDC Coil 4-Pole 6A

Product Code: RF1V-3A1B-D24

  • Force guided relay with 3NO+1NC contacts
  • Compact size: 40x24x13 mm
  • Operates in -40 to 85°C, humidity 5-85%
  • Long mechanical life of 10 million ops
  • Meets CSA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 24
Dimensions (mm) 40W x 24H x 13D
Insulation Resistance (MO) 1000
No. of Poles 4
Operational Temperature Range (°C) -40 to 85
Power Consumption (W) 0.36
Rated Current (mA) 15
Maximum Switching Current (A) 6
Contact Resistance (mO) 100
Weight (g) 20
No. of Normally-open Contacts 3
No. of Normally-closed Contacts 1
Minimum Mechanical Life 10,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Maximum Switching Capacity AC (VA) 1500
Maximum Switching Capacity DC (W) 180
Resistance to Shock (m/s²) 200
Maximum Switching Capacity DC (V) 30
Maximum Switching Capacity AC (V) 250
Product Type Force Guided Relay
Brand IDEC
Coil Voltage 24 VDC
Contact Configuration 3NO+1NC
Contact Resistance 100 MOhm
Depth 13 mm
Height 24 mm
Humidity 5-85%
Insulation Resistance 1000 MOhm
Mechanical Life 10000000 Operations
Number of Poles 4
Operational Temperature -40 to 85 deg C
Rated Current 15 mA
Rated Power 0.36 W
Shock Resistance 200 ms
Standards and Approvals CSA C22.2 14, CSA File 253350, UL Recognized File E55996, UL508
Vibration Resistance 10-55 Hz
Weight 20 g
Width 40 mm

Description

The IDEC RF1V-3A1B-D24 is a force-guided relay with a 3NO-1NC contact configuration, operating on a 24V DC supply. It features a force-guided contact mechanism that complies with EN50205 Type A and has TÜV approval, ensuring reliable performance and safety. The relay is designed for easy installation with finger-safe DIN rail mount and PC board mount sockets, providing flexibility in application without the need for an LED indicator. This component is ideal for safety-critical applications where forced guidance of contacts is necessary.
