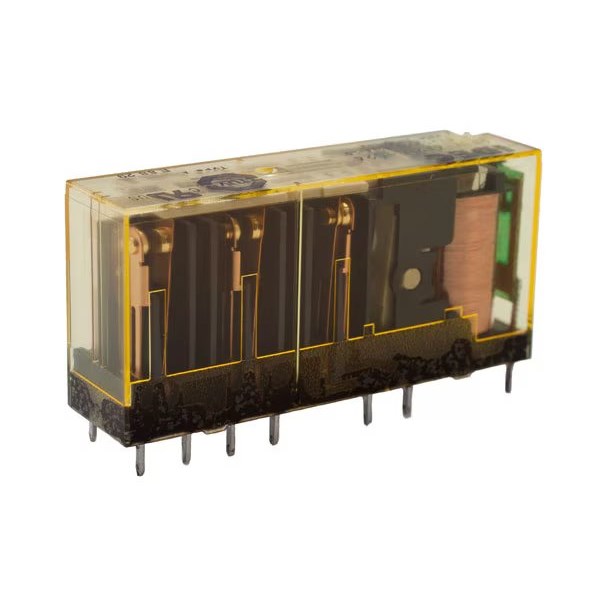

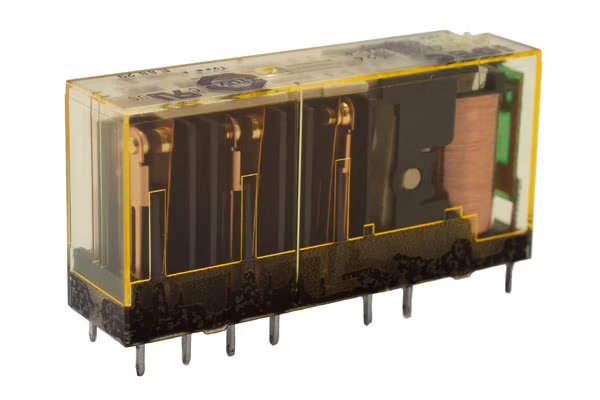

IDEC RF1V-4A2BL-D48 Force Guided Relay 4NO-2NC 48VDC Coil 6-Pole 6A

Product Code: RF1V-4A2BL-D48

  • Force guided relay with 4NO+2NC contacts
  • Compact size: 50x24x13 mm, weight: 23 g
  • High mechanical life of 10 million operations
  • Wide operating temp range: -40 to 85°C
  • Certified to CSA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 48
Dimensions (mm) 50W x 24H x 13D
Insulation Resistance (MO) 1000
No. of Poles 6
Operational Temperature Range (°C) -40 to 85
Power Consumption (W) 0.5
Rated Current (mA) 10.4
Maximum Switching Current (A) 6
Contact Resistance (mO) 100
Weight (g) 23
No. of Normally-open Contacts 4
No. of Normally-closed Contacts 2
Minimum Mechanical Life 10,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Maximum Switching Capacity AC (VA) 1500
Maximum Switching Capacity DC (W) 180
Resistance to Shock (m/s²) 200
Maximum Switching Capacity DC (V) 30
Maximum Switching Capacity AC (V) 250
Product Type Force Guided Relay
Brand IDEC
Coil Voltage 48 VDC
Contact Configuration 4NO+2NC
Contact Resistance 100 MOhm
Depth 13 mm
Height 24 mm
Humidity 5-85%
Insulation Resistance 1000 MOhm
Mechanical Life 10000000 Operations
Number of Poles 6
Operational Temperature -40 to 85 deg C
Rated Current 10.4 mA
Rated Power 0.5 W
Shock Resistance 200 ms
Standards and Approvals CSA C22.2 14, CSA File 253350, UL Recognized File E55996, UL508
Vibration Resistance 10-55 Hz
Weight 23 g
Width 50 mm

Description

The IDEC RF1V-4A2BL-D48 is a force-guided relay with a 4NO-2NC configuration, operating at 48V DC. It features an LED indicator for easy status monitoring and is designed with a force-guided contact mechanism that meets EN50205 Type A TÜV standards. The relay comes with both finger-safe DIN rail mount and PC board mount sockets, ensuring versatility and safety in installation. This product is ideal for applications requiring reliable switching and clear indication of operation.
