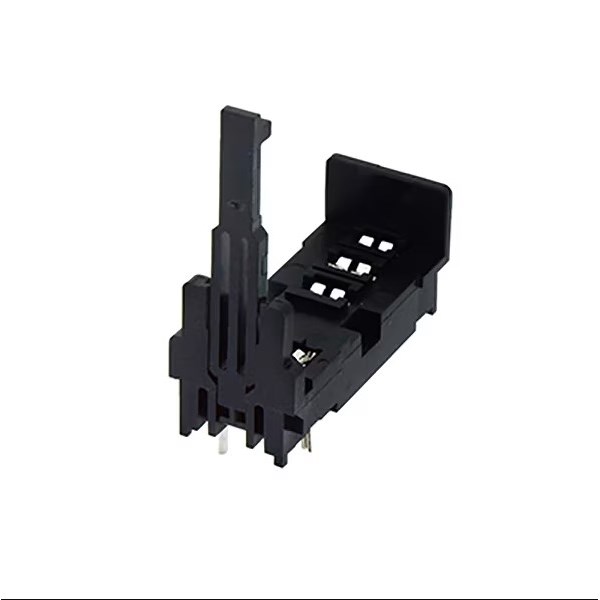

IDEC SJ1S-61 Socket 250V PCB Mount

Product Code: SJ1S-61

  • Compact design: 75.3x55.7x12.2 mm
  • Rated for 250 V and 12 A
  • High insulation resistance: 100 MOhm
  • Operates in -40 to 70°C range
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 75.3W x 55.7H x 12.2D
Insulation Resistance (MO) 100
No. of Poles 1
Operational Temperature Range (°C) -40 to 70
Rated Current (A) 12
Rated Insulation Voltage (V) 250 AC/DC
Tightening Torque (Nm) 1
Weight (g) 30
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Mount
Product Type Socket
Brand IDEC
Degree of Protection IP20
Depth 12.2 mm
Height 55.7 mm
Humidity 5-85%
Insulation Resistance 100 MOhm
Model Blade
Mounting Type PCB
Number of Poles 1
Operational Temperature -40 to 70 deg C
Rated Current 12 A
Rated Voltage 250 V
Shock Resistance 1000 ms
Standards and Approvals CE EN61810-1, CSA C22.2 14 1608322, CSA File LR35144, UL508 UL File E55996, VDE EN61810-1
Vibration Resistance 10-55 Hz
Weight 30 g
Width 75.3 mm

Description

The IDEC RJ1S Relay Base, model SJ1S-61, is a PCB mountable base designed for use with compatible relays. It facilitates secure and reliable relay installation on printed circuit boards.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
