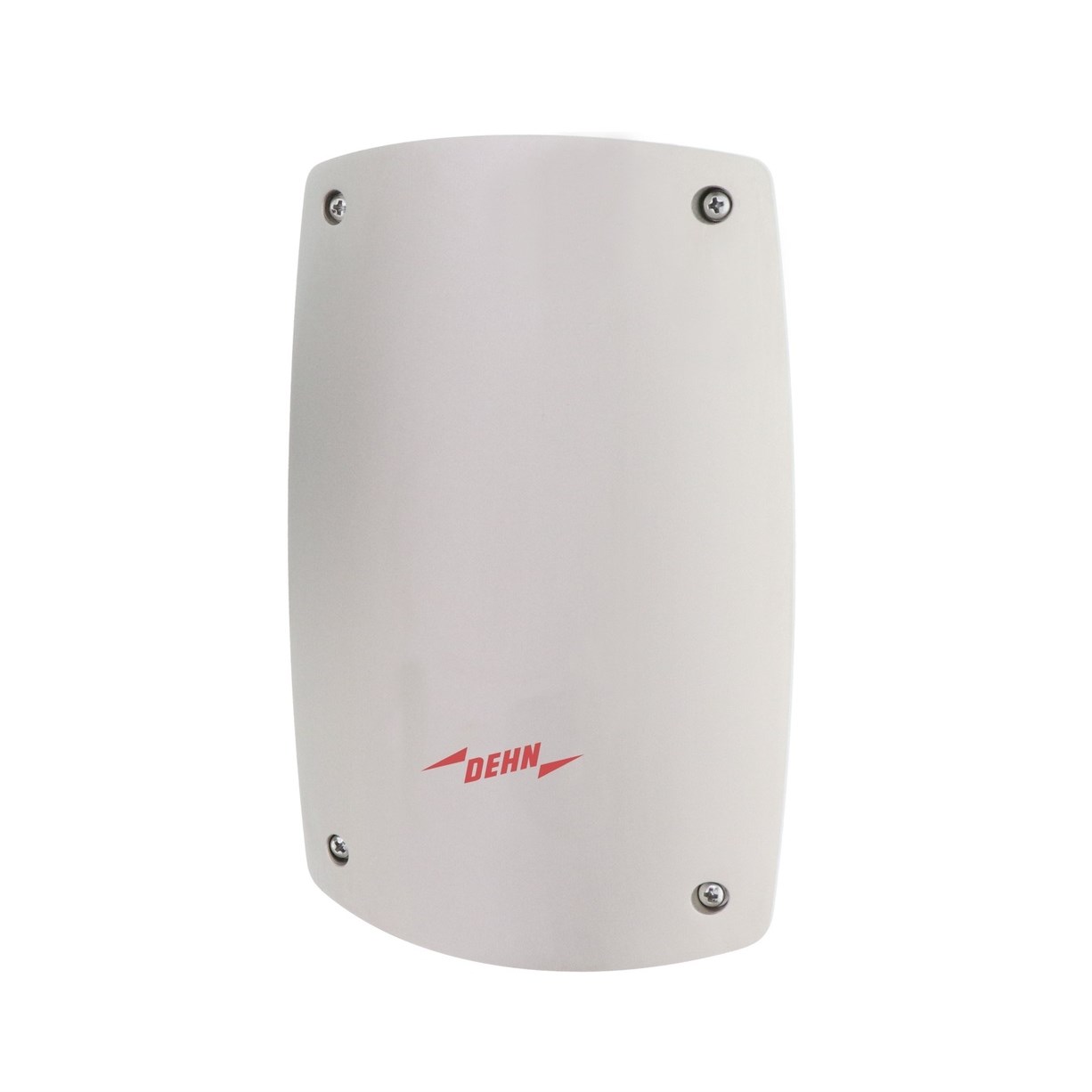

DEHN DPACLEIP66 Surge Arrester 0.8kA 10kA 6VAC RJ45 Socket Pole Wall Mounting IP66

Product Code: DPACLEIP66

  • Surge Protection Device, 6 VAC, 10 kA
  • RJ45 Socket for easy connections
  • IP66 rated for robust protection
  • Mounts on pole or wall setups
  • Compact design: 0.21 x 0.18 x 0.05 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Article No. 929221
Dimensions (mm) 0.18W x 0.21L x 0.05D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 0.8 (Per Line)/4 (Total)
Maximum Continuous Operating Voltage MCOV AC (V) 6
Maximum Continuous Operating Voltage MCOV DC (V) 8.5 (Line-Line)
Nominal Discharge Current (8/20µs) - In (kA) 10
SPD Type Type 2
Weight (kg) 0.75
Circuit Type DB
Nominal Load Current AC - I? (A) 1
Nominal Voltage (V) 5
Product Type Surge Arrester
Brand DEHN
Connection Type RJ45 Socket
Degree of Protection IP66
Depth 0.05 mm
Length 0.21 mm
Lightning Impulse Current 0.8 kA
Mounting Type Pole, Wall
Rated Current 10 kA
Rated Voltage 6 VAC
SPD Class Type 2
Weight 0.75 kg
Width 0.18 mm

Description

Universal surge arrester for GBit Ethernet applications, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems in indoor and outdoor areas (IP 66). Protection of all pairs with powerful gas discharge tubes and one adapted filter matrix for each pair. Fully shielded surge protective sulution with RJ 45 sockets. Universal mounting bracket for pole and wall mounting.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
