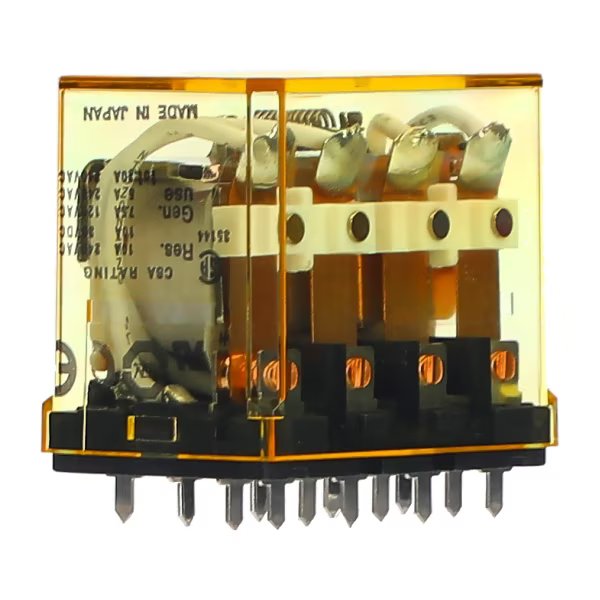

IDEC RH4V2-UDC110V Power Relay 4PDT 110VDC Coil 10A PCB Terminal

Product Code: RH4V2-UDC110V

  • 4PDT contact configuration for versatile use
  • Rated for 110 VDC and 10 A current
  • Durable with 50M mechanical operations
  • Silver Cadmium Oxide contacts ensure reliability
  • CE, cRuus, CSA certified for safety compliance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 4
Power Consumption (W) 1.5
Coil Voltage DC (V) 110
Contacts 4PDT
Weight (g) 74
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 4PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 4
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 110 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuus, CSA
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 74 g

Description

The IDEC RH4V2-UDC110V is a compact, high-capacity 4PDT relay designed for PCB applications. It offers a 10A contact capacity and operates on a 110V DC power supply. Its miniature size ensures space-saving on the circuit board without compromising on power. This relay is suitable for various industrial applications where reliable switching and space efficiency are required.
