Specifications

Product Type	Exit Sign
Brand	RP-TECHNIK GMBH
Series	KSH
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Battery	LiFePO4 3.2 V/1.6 Ah
Battery Connection	Connector
Luminous Flux Emergency	190 lm
Bridging Time	3 h
Dimming Function	No
Emergency Light Blocking	No
Illuminant	LED
Luminous Flux Mains	190 lm
Monitoring	Wireless Basic (WB)
Connection Cross Section	2.5 mm²
Operating Mode	Non-maintained / maintained
Operating Temperature (Maintained Mode)	-10 °C to 40 °C
Operating Temperature (Non-Maintained Mode)	-10 °C to 40 °C
Power Maintained	3.9 W
Power Non-Maintained	1.5 W
Switching Input	Yes
Power Max.	5.3 W
Supply	Self-contained
Housing Colour	White
Housing Material	Polycarbonate
IK Rating	3
Mounting	Universal
Depth	34 mm
Height	220 mm
Weight	0.11 Kg
Width	250 mm
Weight (Including Packaging)	0.19 Kg
IP Rating	IP54
Certification	WEEE, AS/NZS3820, CISPR15, AS/NZS2293.3, RoHS, C0:D5- C90:E4, RCM
Recognition Distance	24 m
Pictograph	Set

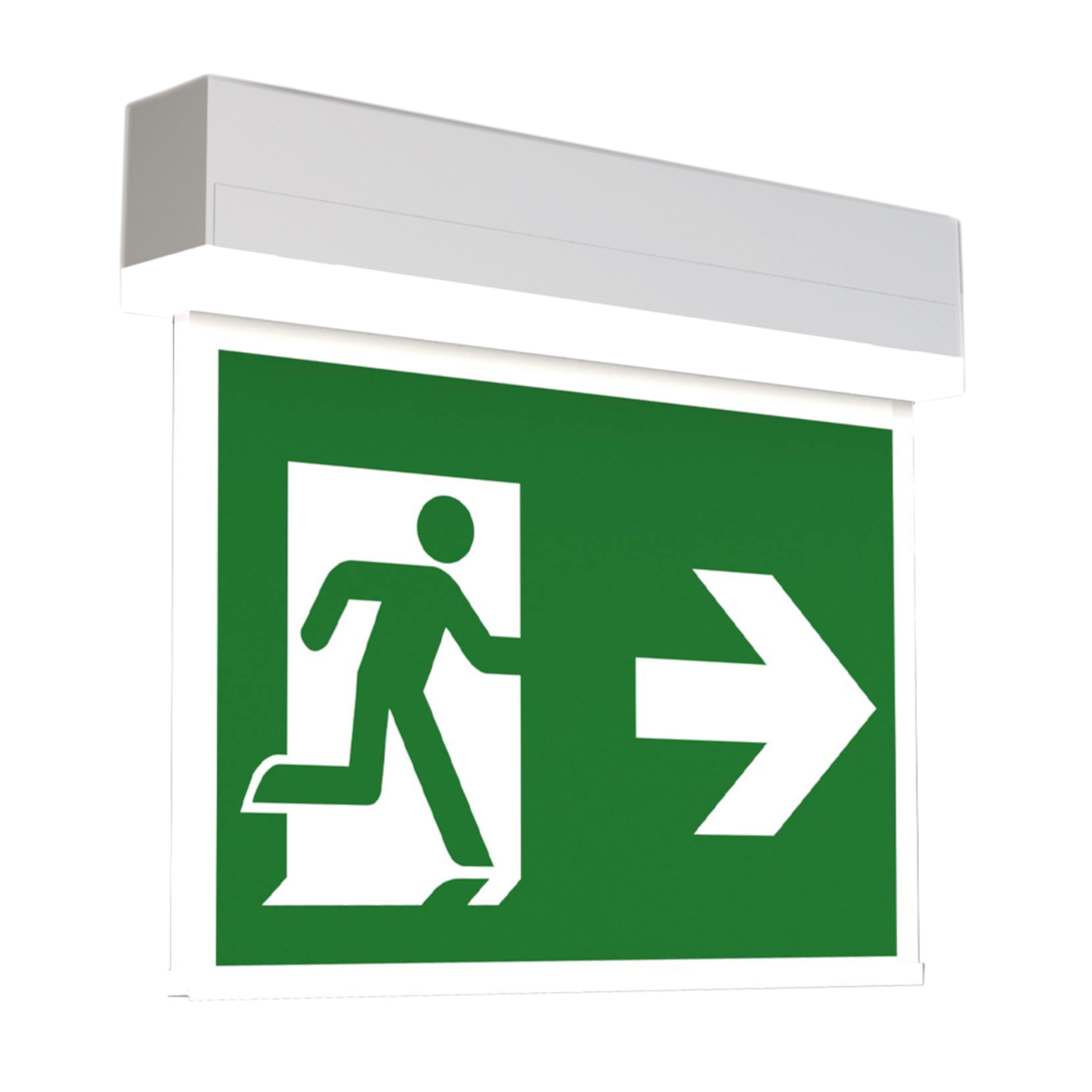

RP Group KSHC413WB-ANZ Exit Sign Self-Contained Emergency Light Universal 3-hour Battery Power 30m Viewing Distance IP54 White Polycarbonate Housing
