Specifications

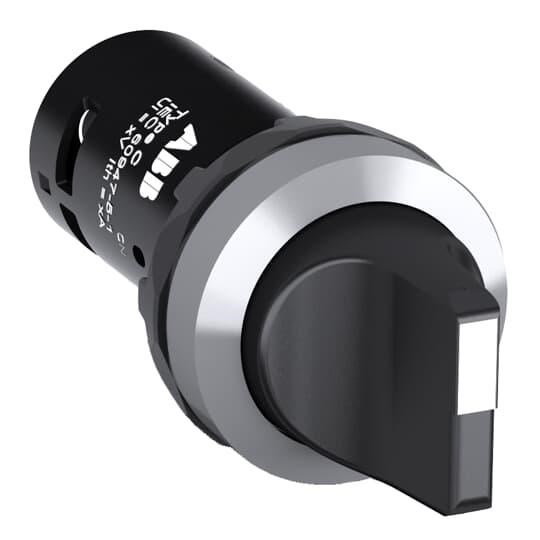

Product Type	Compact Selector Switch
Brand	ABB
Actuator Type	Short Handle
Bezel Material	Chrome Metal
Colour	Black
Contact Configuration	1NO+1NC
Degree of Protection	IP20, IP65
Depth	72 mm
Function	Maintained
Height	30 mm
Illumination	Non-Illuminated
Maintained Position	A, C
Mechanical Life	0.5 million Operations
NEMA Rating	NEMA 1, 12, 13, 3, 3R, 4, 4X
Number of Positions	2
Rated Current	0.2 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	300 V
Rated Operational Current	0.2 A, 0.3 A, 1 A
Rated Operational Voltage	300 VAC/VDC
Rated Voltage	24-300 V
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.8 N-m
Width	30 mm
