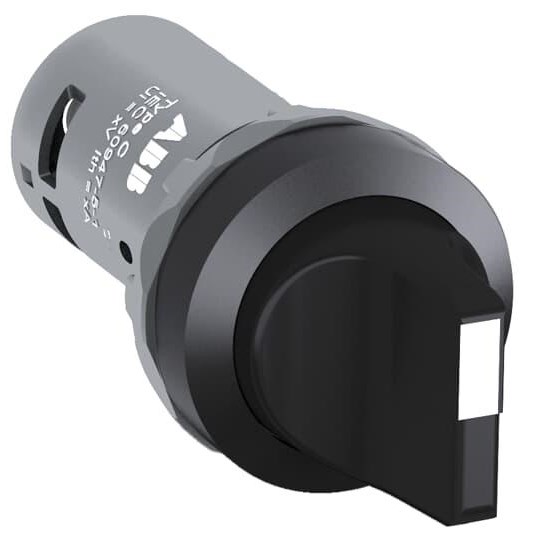

ABB C2SS2-10B-11 Selector Switch Black 24 to 300V 2Position 1NO+1NC Non-Illuminated Maintained Short Handle

Product Code: C2SS2-10B-11

  • Non-illuminated black selector switch
  • Short handle actuator for easy operation
  • IP20/IP65 protection against dust and water
  • Durable with 0.5M mechanical operations
  • Screw terminal type with 0.8 N-m torque
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Dimensions (mm) 30W X 30H X 72D
Maximum Operational Voltage DC (V) 300
Maximum Operational Voltage AC (V) 300
No. of Positions 2
Rated Frequency (Hz) 50/60
Tightening Torque (Nm) 0.8
Rated Operational Current 240V AC (A) 1
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 24V DC (A) 0.3
Product Type Selector Switch
Brand ABB
Actuator Type Short Handle
Bezel Material Plastic
Bezel Type Black Plastic
Colour Black
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Depth 72 mm
Function Maintained
Height 30 mm
Illumination Non-Illuminated
Maintained Position A, C
Mechanical Life 0.5 million Operations
Mode of Operation Maintained
NEMA Rating NEMA 1, 12, 13, 3, 3R, 4, 4X
Number of Positions 2
Rated Current 0.2 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Operational Current 0.2 A, 0.3 A, 1 A
Rated Operational Voltage 300 VAC/VDC
Rated Voltage 24-300 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.8 N-m
Width 30 mm

Description

The Non-Illuminated Selector switch is a 2-position fixed switch from the compact range. It is designed in a black colour and has a maintained operation. The switch features 1 normally open (NO) and 1 normally closed (NC) contact configuration.
