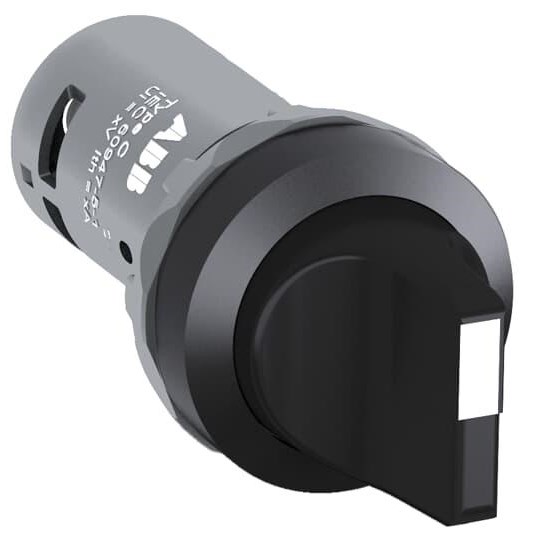

For professionals in the industrial and commercial sectors, selecting the right components is crucial to ensuring seamless operations. This selector switch stands out as a reliable choice for those who demand precision and durability. Its non-illuminated design, with a sleek black finish, offers simplicity without compromising functionality.
Operating within a wide voltage range of 24-300 V and supporting both AC and DC currents, this switch is versatile enough to fit various applications. The rated current spans from 0.2 A up to 1 A, providing flexibility depending on your specific needs. With a rated frequency of 50/60 Hz, it integrates seamlessly into standard electrical systems.
The switch's robust construction is evident in its IP20/IP65 degree of protection ratings, making it suitable for environments where dust ingress or water exposure might be concerns. Additionally, it boasts an impressive NEMA rating covering types 1 through 4X, highlighting its capability to withstand harsh conditions while maintaining performance reliability.
Designed with user convenience in mind, the short handle actuator ensures ease of use during momentary operations. It features a screw terminal type that supports secure connections with a tightening torque of 0.8 N-m—ideal for maintaining stable contact over prolonged periods.
From an insulation perspective, the rated insulation voltage sits at an adequate 300 V while offering substantial safety margins with a rated impulse withstand voltage of up to 6 kV. These specifications provide peace of mind regarding electrical safety standards compliance.
Mechanically speaking, this selector switch promises longevity with up to half a million operational cycles—a testament to its durable design and engineering excellence. The contact configuration includes two normally open (2NO) contacts which are suited for various control circuit applications.
Its dimensions are compact yet practical: measuring just 30 mm in width and height but extending to a depth of 72 mm—allowing easy integration into panels or consoles without excessive space demands.
Temperature resilience ranges from -40°C up to +85°C storage temperatures—ensuring optimal performance across different climates or seasonal variations typical in Australian settings.
The plastic bezel material adds another layer by providing resistance against corrosion while maintaining structural integrity over time—a feature particularly beneficial when exposed continuously outdoors or within corrosive industrial atmospheres.
With maintained positions C and B available alongside other functional attributes like momentary action capability; this selector switch proves itself not only adaptable but also highly efficient under diverse operational scenarios required by modern technical infrastructures today.
