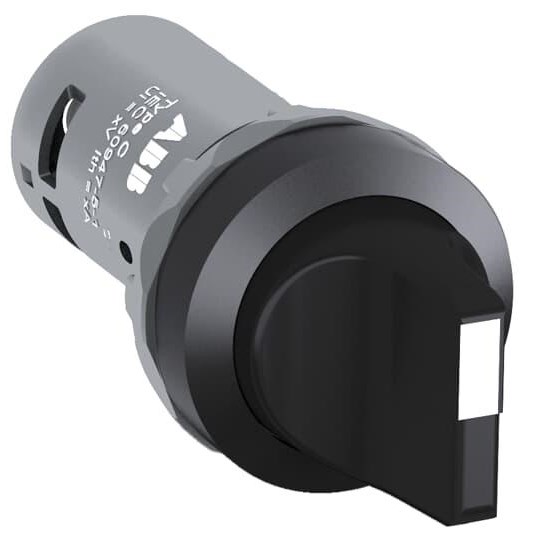

ABB C3SS3-10B-11 Compact Selector Switch Black 24 to 300V 3Position 1NO Non-Illuminated Maintained

Product Code: C3SS3-10B-11

  • Supports wide voltage range: 24-300 V
  • Durable with 0.5M operations mechanical life
  • High protection: IP20, IP65, NEMA 1 to 4X
  • Short handle actuator for easy use
  • Screw terminal connection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Compact Selector Switch
Brand ABB
Actuator Type Short Handle
Bezel Material Plastic
Colour Black
Contact Configuration 1NO
Degree of Protection IP20, IP65
Depth 72 mm
Function Maintained
Height 30 mm
Illumination Non-Illuminated
Maintained Position C, B
Mechanical Life 0.5 million Operations
NEMA Rating NEMA 1, 12, 13, 3, 3R, 4, 4X
Number of Positions 3
Rated Current 0.2 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Operational Current 0.2 A, 0.3 A, 1 A
Rated Operational Voltage 300 VAC/VDC
Rated Voltage 24-300 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.8 N-m
Width 30 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
