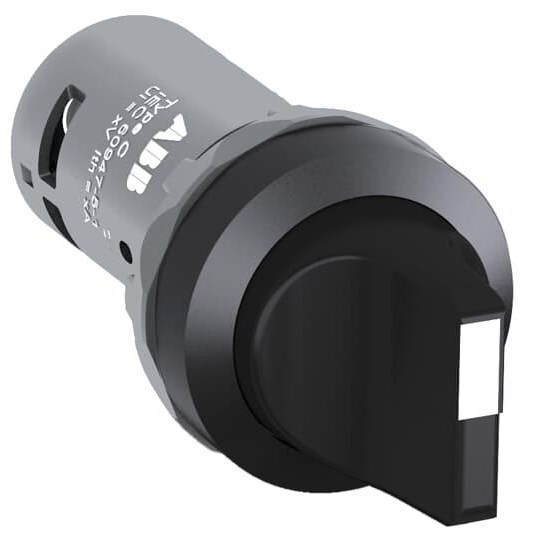

For professionals in the industrial and commercial sectors, selecting the right components is crucial for ensuring operational efficiency and reliability. This selector switch is a practical choice that blends robust performance with essential technical specifications.
Designed to operate within a wide voltage range of 24-300 V, this selector switch accommodates diverse applications. It supports both AC and DC systems with rated operational voltages up to 300 VAC/VDC, making it versatile across different power setups. The rated current varies between 0.2 A, 0.3 A, and up to 1 A depending on specific needs, providing flexibility for various circuit requirements.
The device operates at standard frequencies of 50/60 Hz, fitting seamlessly into most electrical systems without requiring special adjustments. Its non-illuminated black actuator features a short handle design that ensures easy operation while maintaining a compact profile with dimensions of 30 mm width by 30 mm height by 72 mm depth.
Durability is ensured through its mechanical life expectancy of half a million operations—ideal for high-use environments where longevity matters. The contact configuration includes two normally open (2NO) positions which are suitable for momentary functions, ensuring reliable control over connected circuits.
Safety and protection are paramount; hence this selector switch boasts an impressive degree of protection rating: IP20 for basic indoor use and IP65 against dust ingress and low-pressure water jets from any direction when properly installed in enclosures. Additionally, it meets multiple NEMA ratings including NEMA types 1, 12, 13 for general-purpose indoor use as well as NEMA types 3, 3R for outdoor weather resistance and types 4, 4X offering enhanced protection against corrosion.
Installation is straightforward thanks to screw terminal connections designed to provide secure wiring under a tightening torque of 0.8 N-m. This ensures stable electrical connectivity even in demanding conditions or environments subject to vibration or movement.
Constructed from durable plastic materials that withstand harsh conditions ranging from -40°C to +85°C storage temperatures without compromising structural integrity or performance capabilities.
In summary, this selector switch offers reliable functionality combined with essential safety features tailored specifically for industrial settings where precision and dependability are non-negotiable elements in daily operations—making it an excellent choice for those seeking quality without unnecessary complexity in their control systems.
