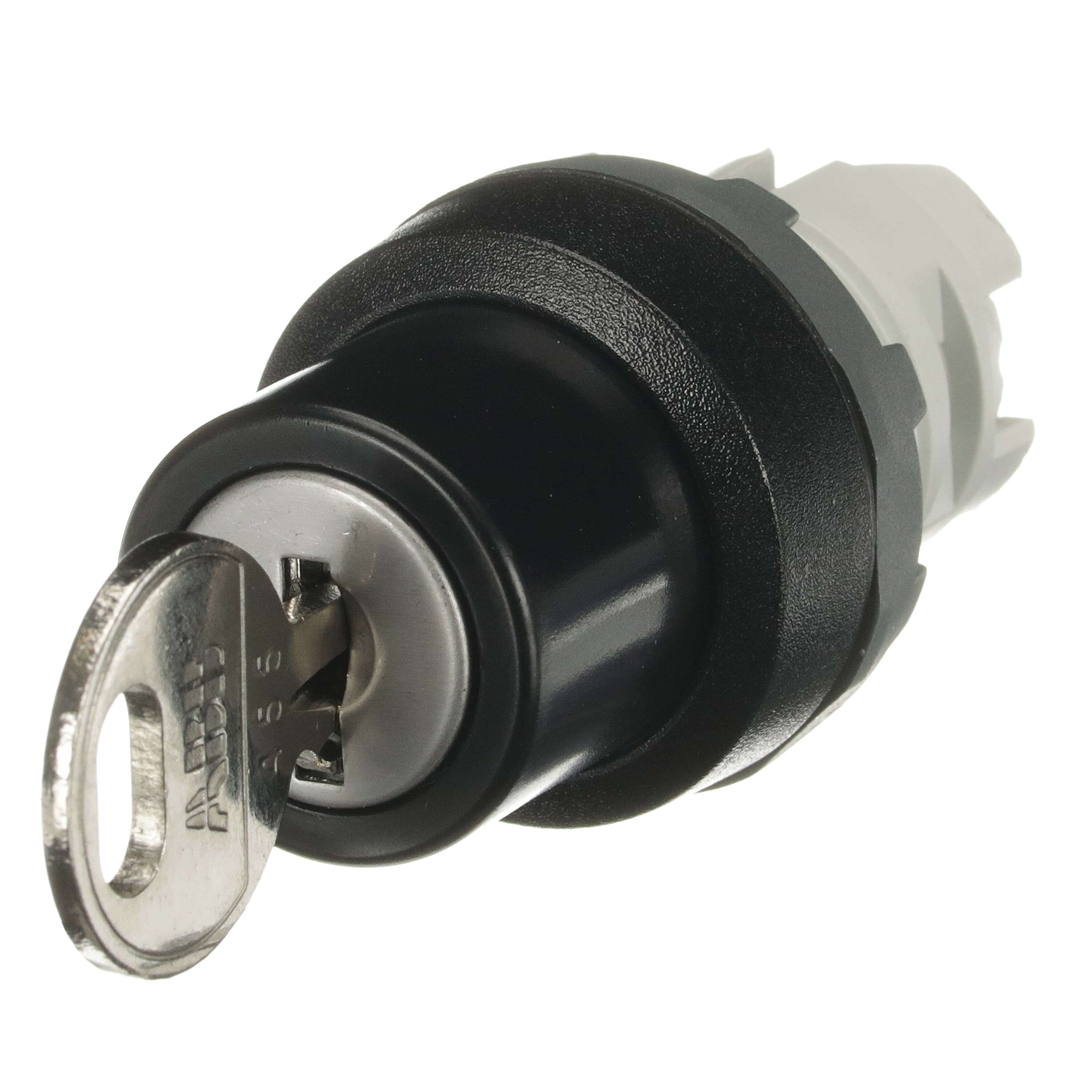

ABB M2SSK3-101 Selector Switch Black 2Position Non-Illuminated Momentary Key Plastic 48mm W 30mm H

Product Code: M2SSK3-101

  • Non-illuminated black key selector switch
  • Compact size: 48mm W x 30mm H x 63mm D
  • Durable plastic construction, IP66 rated
  • Operates in -25 to 70°C, stores up to 85°C
  • Complies with IEC/EN standards and NEMA ratings
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 48W x 30H x 63D
Operational Temperature Range (°C) -25 to 70
Weight (kg) 0.045
Key Ronis 455, Key Code 71
Key Removal / Retained Positions Position B Only
Storage Temperature Range (°C) -25 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Spring Return From C to B
Product Type Selector Switch
Brand ABB
Actuator Type Key
Bezel Material Plastic
Colour Black
Degree of Protection IP66
Depth 63 mm
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Maintained Position C, B
Material Plastic
Mode of Operation Momentary 2-Position Selector Switch
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4X
Number of Positions 2
Operational Temperature -25 to 70 deg C
Standards and Approvals IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5
Storage Temperature -25 to 85 deg C
Weight 0.045 kg
Width 48 mm

Description

The M2SSK3-101 Selector Switch is: 2-position - Momentary - Key - Black/Key - Non-illuminated - Black Plastic - No contact block. This Selector Switch is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
