Specifications

Dimensions (mm)	5W x 6H x 5D
Thickness (mm)	2.5
Suitable For	Diameter round conductor 8mm
Weight (kg)	0.17
Clamping Range (mm)	0.7-10
Weight (g)	171
Surface Protection	Hot-dip galvanized
Gross Weight (g)	173.5
Rod Diameter (mm)	8 - 10

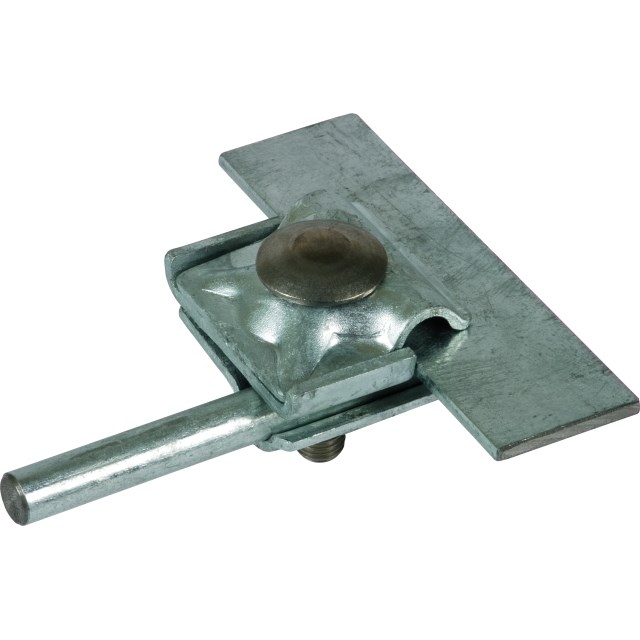

Product Type	Saddle Clamp
Brand	DEHN
Clamping Range	0.7-10 mm
Connection Type	M10 x 45 mm Screw
Connector Type	Saddle Clamp
Depth	5 mm
Finish	Hot Dip Galvanized
Height	6 mm
Lid Screw Type	Flat round screw
Lightning Current Carrying Capability	50 kA
Material	Steel
Screw Size	M10
Standards and Approvals	EN 62561-1
Thickness	3 mm, 2.5 mm
Weight	171 g
Width	5 mm
