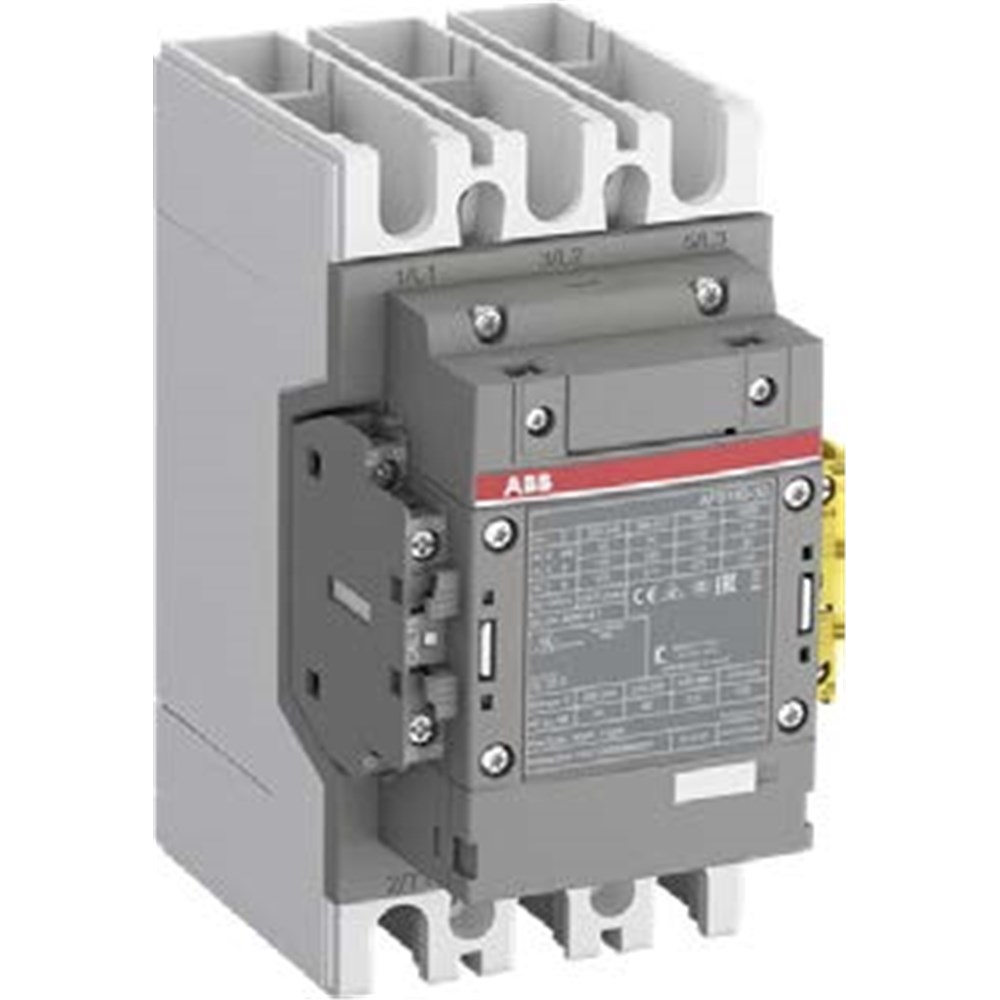

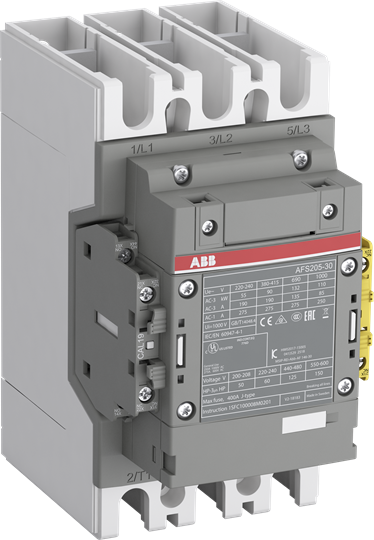

ABB AFS205301213 SAFETY CONTACTOR 3P 350A (AC-1), 110KW 415VAC CONTROL 100-250VAC/DC

Product Code: AFS205301213

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail/Panel
Brand ABB
Auxiliary Contacts 1NO/2NC
Contacts 3NO (Main Contacts)
Mode of Operation AC/DC
No. of Poles 3P
Rated Control Circuit Voltage AC/DC (V) 100 -250
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-1 400V (A) 350
Rated Operational Current AC-1 690V (A) 350
Rated Operational Current AC-3 415V (A) 205
Rated Operational Power AC-3 400V (kW) 110
Rated Operational Voltage AC (V) 1000
Short-Circuit Protective Device 400A, fuse type gG
Terminal Type Main Circuit: Bars
Dimensions (mm) 196H x 152D x 105W
Degree of Protection IP20 (Coil Terminals)

Description

The Safety Contactor 3P is a reliable and efficient solution for machine safety applications. It has a rated operational current of 350A at 690V (AC1) and 105A at 415V (AC-3), making it suitable for high-power operations up to 110kW. With a control voltage range of 100-250V AC/DC, this contactor offers flexibility in various electrical systems. It also features built-in auxiliary contacts, including 1 normally open (NO) and 2 normally closed (NC) contacts. These auxiliary contacts are easily identifiable with their yellow low energy auxiliary contact block. The inclusion of these auxiliary contacts ensures the necessary status feedback circuits required for machine safety applications. This not only enhances safety but also helps reduce panel energy consumption. Additionally, the contactor is designed to provide distinct operations even in unstable networks. The Safety Contactor 3P can be conveniently mounted either on DIN rails or panels, offering versatility in installation options.
