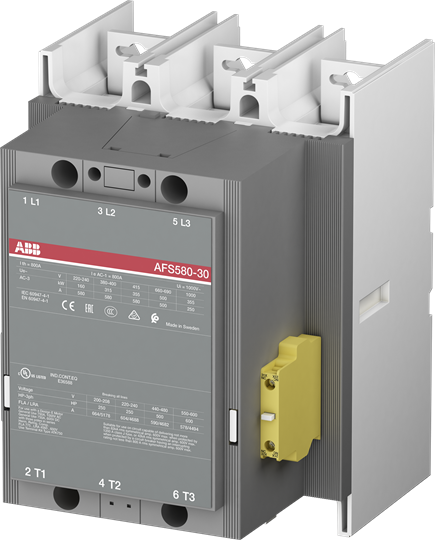

ABB AFS580301268 SAFETY CONTACTOR 3P 800A (AC-1), 355KW 415VAC CONTROL 24-60VDC

Product Code: AFS580301268

The Safety Contactor 3P is a reliable and efficient solution for machine safety applications. It has a rated operational current of 800A at 690V (AC1) and 580A at 415V (AC-3), with a power rating of 355kW. The control voltage ranges from 24V to 60V DC. This contactor comes with built-in auxiliary contacts, including 1 normally open (NO) and 2 normally closed (NC) contacts. These contacts are easily identifiable with their yellow colour and are designed to ensure the status feedback circuits required in machine safety applications. One of the key benefits of this contactor is its ability to reduce panel energy consumption, making it an energy-efficient choice. Additionally, it ensures distinct operations even in unstable networks. The Safety Contactor 3P is suitable for both DIN rail mounting and panel mounting, providing flexibility in installation options.

Technical Specifications

Brand ABB
Auxiliary Contacts 1NO/2NC
Contacts 3NO (Main Contacts)
Degree of Protection IP20 (Coil Terminals)
Dimensions (mm) 283H x 242D x 210W
Mode of Operation AC/DC
Mounting Type DIN Rail/Panel
No. of Poles 3P
Rated Control Circuit Voltage DC (V) 24 - 60
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-1 400V (A) 800
Rated Operational Current AC-1 690V (A) 800
Rated Operational Current AC-3 415V (A) 580
Rated Operational Power AC-3 400V (kW) 315
Rated Operational Voltage AC (V) 1000
Short-Circuit Protective Device 1000A, fuse type gG
Terminal Type Main Circuit: Bars
