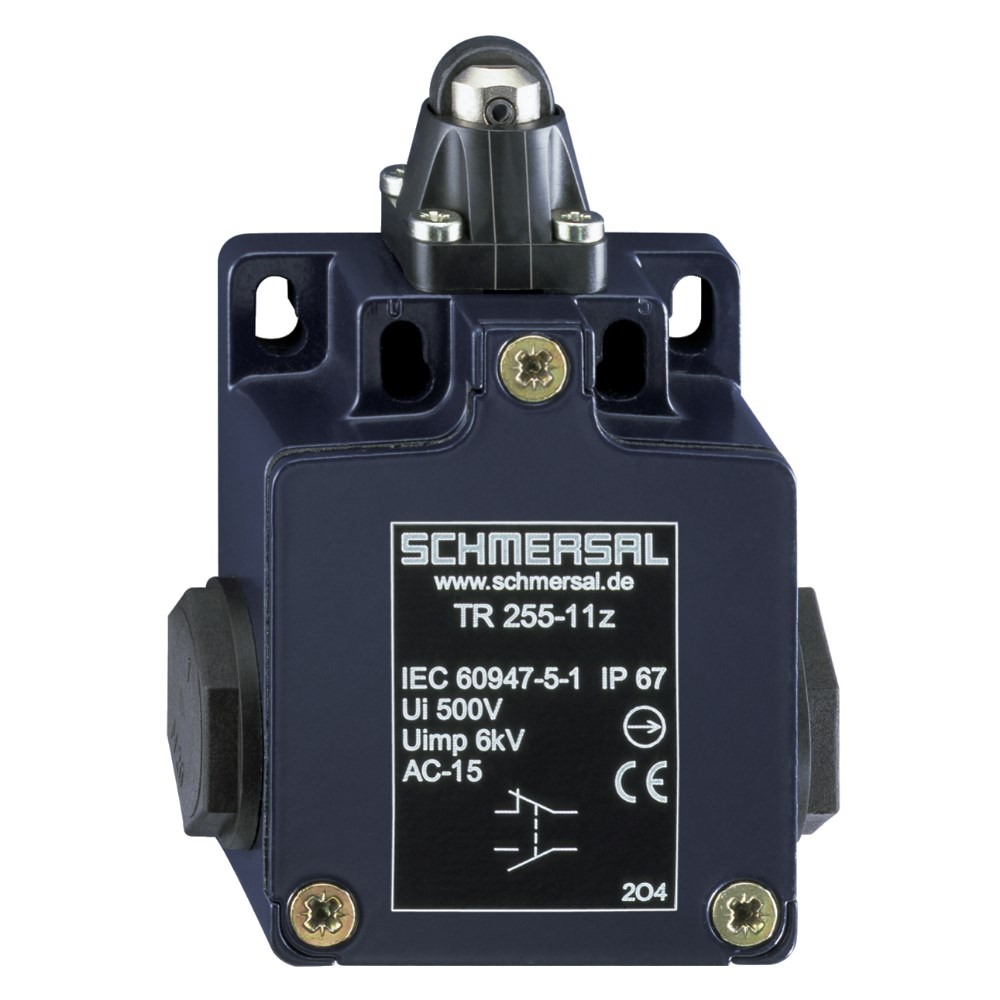

Schmersal 101162754 Position Switch with Safety Function Roller Plunger 1NO-1NC Metal Die Cast Zinc Silver Contact

Product Code: 101162754

  • Rated for 240 VAC, 4 A
  • Durable metal, die-cast zinc housing
  • High protection: IP65, IP67
  • Roller plunger actuator with slow action
  • Long mechanical life: 20 million ops
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series 255
Actuating Speed 120 mm/min
Actuator Type Roller Plunger
Cable Cross Section 0.75 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP65, IP67
Housing Material Metal, Die Cast Zinc
Mechanical Life 20000000 Operations
Number of Auxiliary Contacts 1
Rated Current 4 A
Rated Voltage 240 VAC
Standards and Approvals BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, ENISO 13849-1
Switching Type Slow Action
Weight 164 g

Description

<p>For professionals in the industrial and commercial sectors, selecting the right component is crucial to ensuring operational efficiency and safety. The Series 255 product offers a robust solution for those needing reliable performance in demanding environments.</p><p>This device operates at a rated voltage of 240 VAC with a current capacity of 4 A, making it suitable for various applications that require consistent power handling. Constructed from metal and die cast zinc, its housing ensures durability and longevity, even under challenging conditions. Its IP65 and IP67 ratings certify its resistance to dust ingress and water exposure, providing peace of mind in harsh settings.</p><p>The Series 255 meets several international standards such as BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, and ENISO 13849-1. These approvals underline its compliance with global safety regulations—a critical factor when integrating components into complex systems.</p><p>Weighing just 164 grams, this device features a contact configuration of one normally open (NO) and one normally closed (NC) contact. This arrangement allows for versatile control options within your system design. With one auxiliary contact included, it enhances monitoring capabilities without complicating installation or operation.</p><p>The switching type is slow action with an actuator type that uses a roller plunger mechanism. This design facilitates smooth operation at an actuating speed of 120 mm/min—ideal for applications requiring precise movement control. The silver contact material ensures excellent conductivity while minimizing wear over time.</p><p>Supporting a cable cross section of up to 0.75 sq-mm further highlights its adaptability across different wiring setups without compromising performance integrity. Additionally, the mechanical life expectancy reaches up to twenty million operations—an impressive figure guaranteeing long-term reliability.</p><p>In summary, the Series 255 product combines rugged construction with advanced functionality tailored for industrial use cases where precision and reliability are paramount considerations during selection processes.</p>
