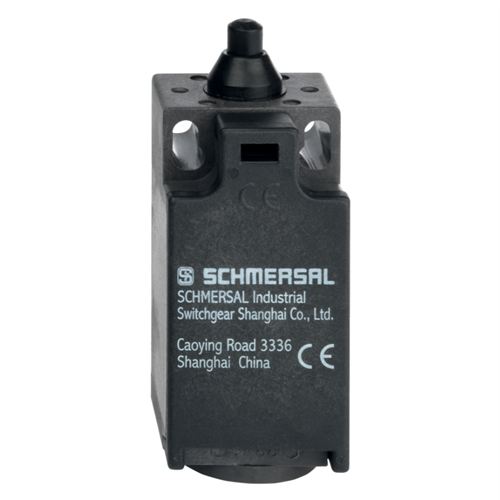

Schmersal 101168172 Position Switch w/Safety Function Plunger 1NO-1NC Plastic Glass Fibre Reinforced Thermoplastic

Product Code: 101168172

  • Durable plastic & glass fibre reinforced housing
  • High protection with IP67/IP65 ratings
  • Complies with multiple international standards
  • Snap action switching for quick response
  • Long mechanical life of 20 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch with Safety Function
Brand SCHMERSAL
Actuating Element Plunger
Actuating Speed 1 m/s
Actuator Type Plunger
Cable Cross Section 0.75 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP67, IP65
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 20000000 Operations
Rated Current 4 A
Rated Voltage 230 VAC
Standards and Approvals BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, ENISO 13849-1
Switching Type Snap Action
Weight 50 g

Description

<p>When it comes to industrial and commercial applications, selecting the right enclosure is crucial for ensuring both safety and performance. This particular enclosure offers a robust solution with its thoughtful design and reliable specifications.</p><p>Built from glass fibre reinforced thermoplastic, this enclosure combines durability with lightweight convenience, weighing in at just 50 grams. The choice of material ensures resistance against wear and potential environmental damage while maintaining a manageable weight for easy installation and handling.</p><p>Rated for 230 VAC and supporting a current of up to 4 A, this enclosure is well-suited for various electrical applications. Its IP67 and IP65 ratings confirm that it provides excellent protection against dust ingress as well as water immersion up to certain depths, making it ideal for harsh environments where reliability is paramount.</p><p>Safety standards are thoroughly met with approvals such as BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, and ENISO 13849-1. These certifications ensure compliance with international safety norms which are critical when operating in diverse global markets or adhering to strict industry regulations.</p><p>The contact configuration of this unit is designed with versatility in mind: featuring both normally open (NO) and normally closed (NC) circuits (1NO+1NC), it&amp;#39;s adaptable to various control schemes. The snap action switching type ensures rapid response times essential in many automated processes. With an actuator type of plunger, the device offers straightforward actuation suitable for numerous mechanical interfaces.</p><p>Notably durable in terms of operational longevity, the mechanical life extends up to an impressive 20 million operations—indicative of its reliability over extended periods under regular use conditions. Furthermore, the silver contact material enhances conductivity while minimizing wear over time.</p><p>For ease of integration into existing systems or new installations alike, the cable cross-section measures at 0.75 sq-mm—providing a balance between flexibility and sufficient current carrying capacity without unnecessary bulk.</p><p>Overall, this enclosure stands out due to its comprehensive feature set tailored toward demanding technical environments requiring consistent performance without compromise on quality or safety standards.</p>
