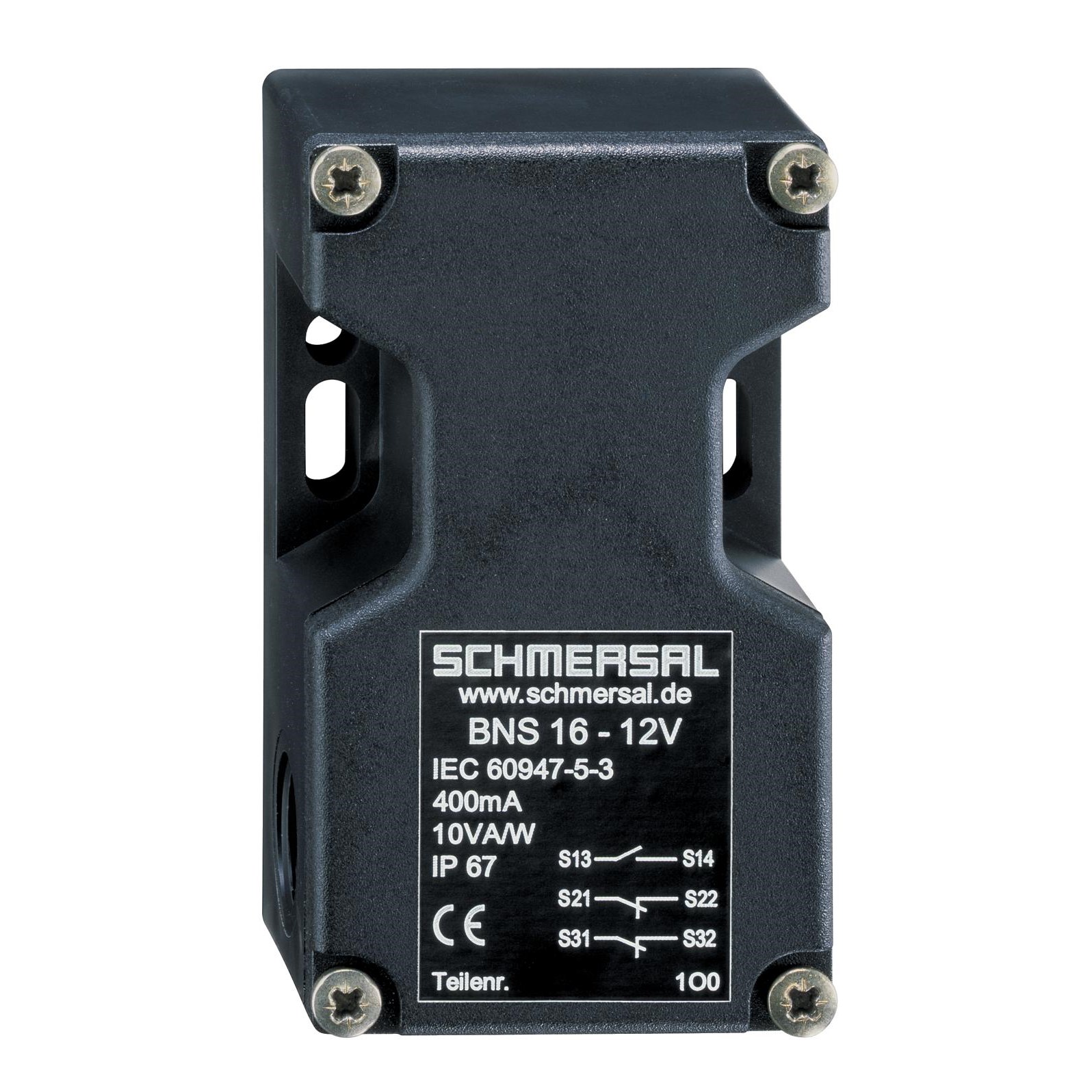

Schmersal 101172565 Magnetic Safety Sensor

Product Code: 101172565

  • Operates at 100 VAC with 0.4 A current
  • Durable design with IP67 protection
  • Long mechanical life of 25 million cycles
  • Robust glass fibre reinforced thermoplastic housing
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Sensor
Brand SCHMERSAL
Series BNS16
Actuating Element Magnet
Actuator Type Offset roller lever K370
Contact Material Silver
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 100 VAC
Sensor Size 39 mm L x 52 mm W x 90 mm H
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Terminal Type Screw terminals M20 x 1.5
Vibration Resistance 10-55 Hz
Weight 150 g

Description

<p>When selecting a product for industrial or commercial use, the key is to focus on its specifications and how they align with your technical needs. This particular product offers a robust set of features tailored for demanding environments.</p><p>Operating at a rated voltage of 100 VAC and a current of 0.4 A, this device delivers a rated power output of 10 W. It operates efficiently within a frequency range up to 5 Hz, making it suitable for various applications requiring consistent performance.</p><p>Durability is at the forefront with an impressive mechanical life of 25 million cycles. This ensures longevity and reliability in high-use scenarios, reducing downtime and maintenance costs over time.</p><p>Constructed from glass fibre reinforced thermoplastic, the housing material provides enhanced strength while maintaining lightweight characteristics—only weighing in at 150 g. The IP67 degree of protection guarantees that this device is dust-tight and can withstand immersion in water, making it ideal for harsh environmental conditions.</p><p>The operational temperature range spans from -25&amp;#176;C to 70&amp;#176;C, offering flexibility across different climates and working conditions without compromising functionality. Additionally, it meets rigorous standards such as BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1 ensuring compliance with industry norms for safety and performance.</p><p>The actuating element utilizes magnet technology which contributes to its precise operation. With dimensions measuring at 39 mm L x 52 mm W x 90 mm H, the sensor size allows easy integration into existing systems without taking up excessive space.</p><p>Vibration resistance between frequencies of 10-55 Hz further enhances its robustness against mechanical disturbances often encountered in industrial settings. </p><p>This combination of features makes this product an exceptional choice for those seeking reliability coupled with advanced engineering suited for challenging environments where both safety and efficiency are paramount considerations.</p>
