Specifications

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 260
Cable Length	1 m
No. of N/C Contacts	3
No. of N/O Contacts	0
Contact Configuration	3NC
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Power	10 W
Rated Voltage	75 V DC
Actuator Type	BPS 260
Housing Material	Glass-fibre, reinforced thermoplastic
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/ms, 11 g/ms
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	13 mm
Height	36 mm
Weight	60 g
Width	26 mm
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14, cULus, EN IEC 60947-5-3
Enclosure Dimensions	13 mm L x 26 mm W x 36 mm H

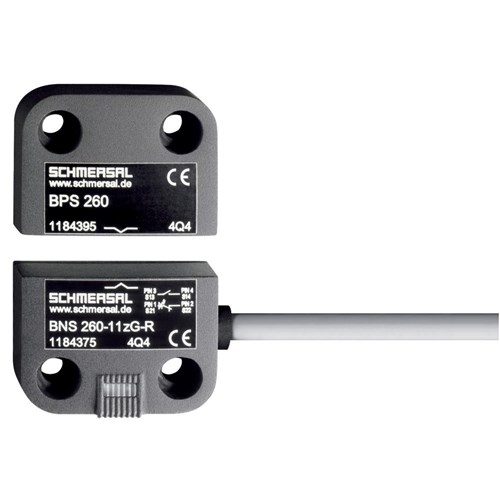

Schmersal 101184370 Magnetic Safety Sensor 3NC 1m Cable
