Specifications

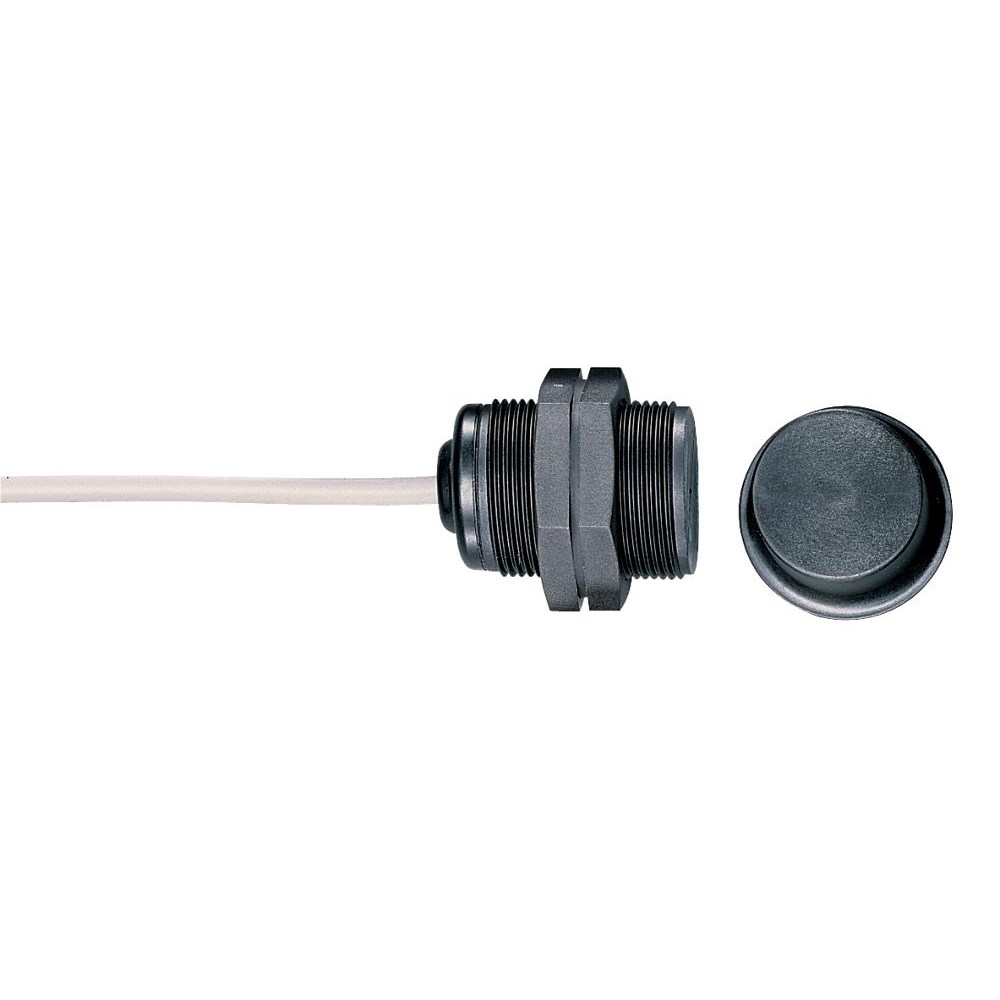

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 303
Cable Length	3 m
No. of N/C Contacts	1
No. of N/O Contacts	1
Contact Configuration	1NO+1NC
Rated Current	0.01 A
Rated Frequency	5 Hz
Rated Power	0.24 W
Rated Voltage	24 V DC
Terminal Type	Connector M12, 4-pole
Actuator Type	BPS 303; BPS 300; BPS 303 SS
Contact Material	Silver
Housing Material	Glass-fibre, reinforced thermoplastic
Mounting Type	Quasi-Flush
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/ms
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	44 mm
Weight	155 g
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Enclosure Dimensions	44 mm L
