Specifications

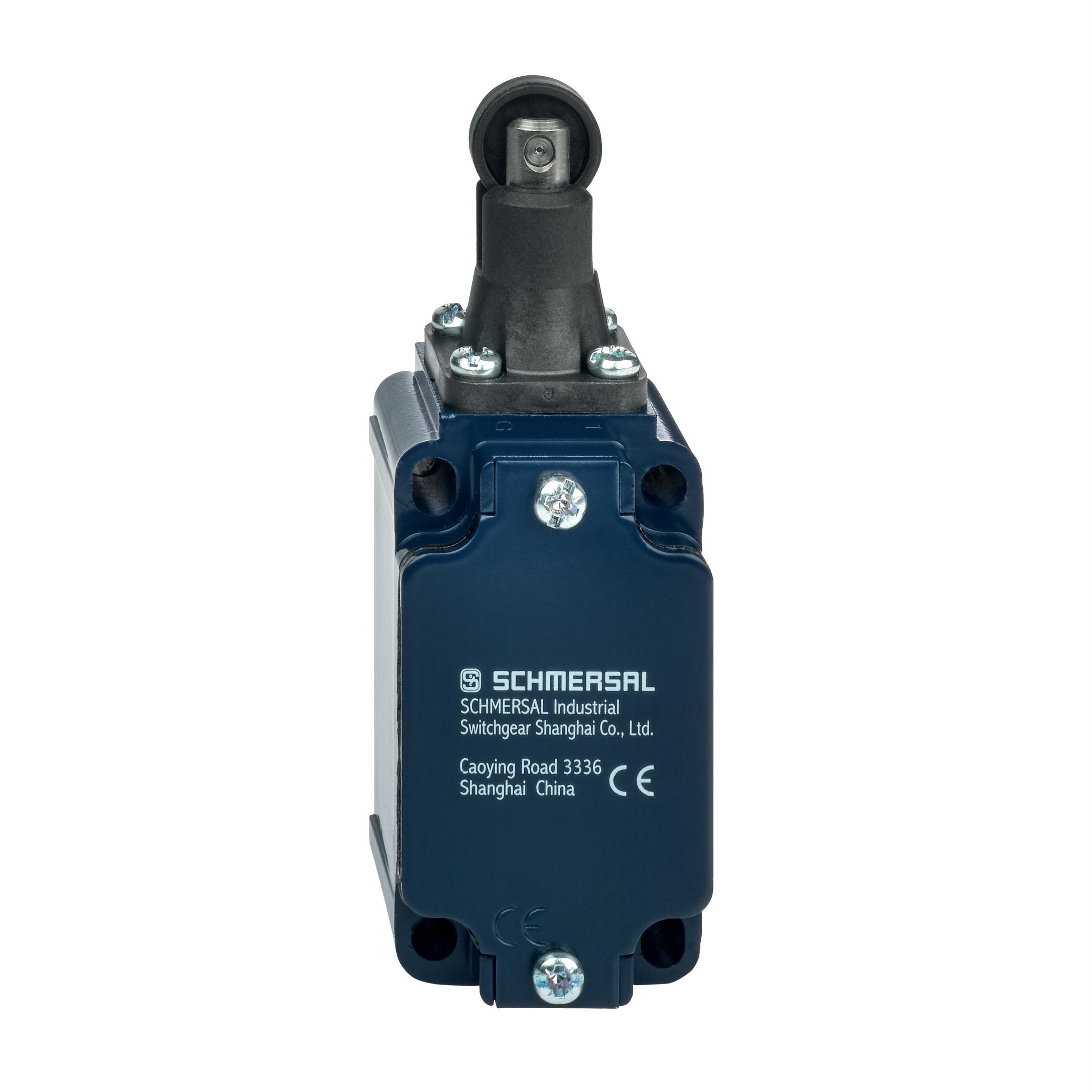

Product Type	EX Position Switch with Safety Function
Brand	SCHMERSAL
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	5 A
Rated Voltage	230 VAC
Terminal Type	Screw terminals
Mechanical Durability	1000000 Cycles
Actuator Type	Roller Plunger
Contact Material	Silver
Housing Material	Metal, Die Cast Zinc
Weight	320 g
Size	13 AWG
Operating Temperature	-10 to 50 deg C
IP Rating	IP67
Standards and Approvals	ATEx, CCC Ex, cULus, EN IEC 60947-5-1, EN ISO 14119, IECEx, INMETRO
Enclosure Dimensions	38 mm L x 40.5 mm W x 116.6 mm H
