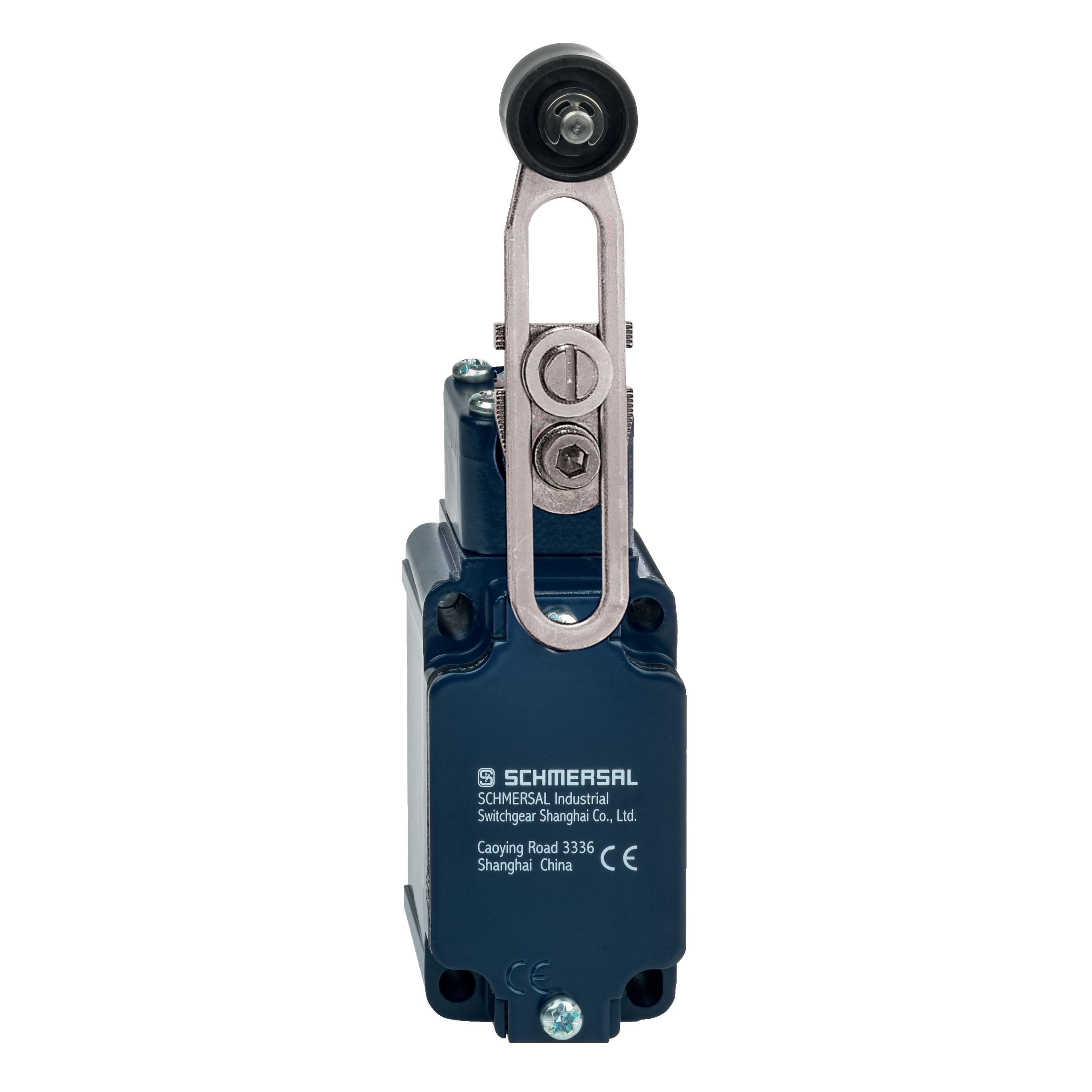

Schmersal 101212066 EX Position Switch with Safety Function

Product Code: 101212066

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 VAC 500 V
Rated Current	5 A
Terminal Type	Screw terminals
Mechanical Durability	1000000 Cycles
Thermal Test Current	5A
Actuator Type	Rod lever
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Metal, zinc die-cast
Depth	38 mm
Height	111.5 mm
Weight	400 g
Width	40.5 mm
Operating Temperature	-20 to 60 deg C
IP Rating	IP65
Standards and Approvals	BG-GS-ET-15, EN IEC 60079-0, EN ISO 13849-1
Enclosure Dimensions	38 mm L x 40 mm W

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

EU Declaration of Conformity

CAD Blocks & Dimensions

Dimensions

Dimensions
