Specifications

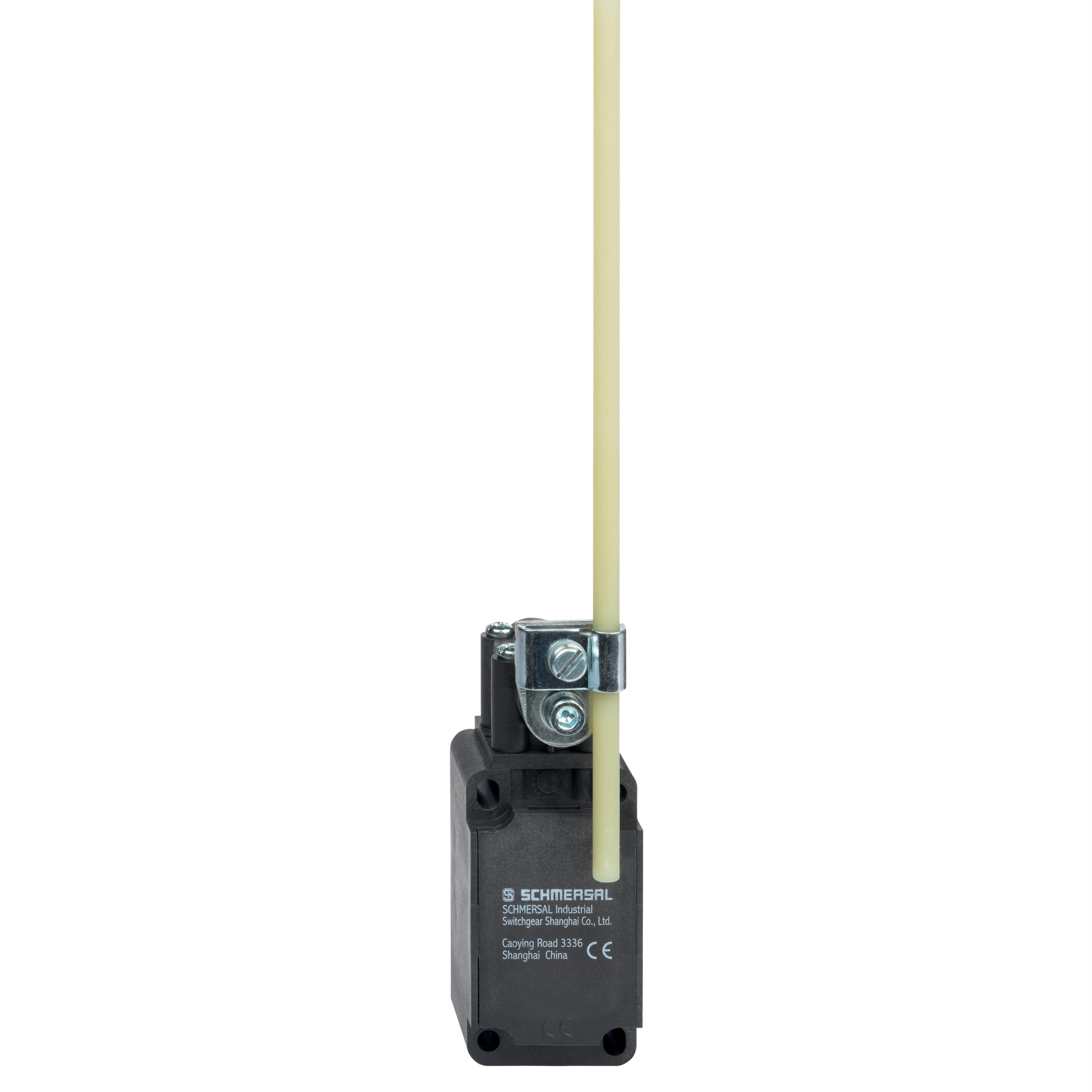

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Snap Action
Contact Configuration	NC
Rated Current	4 A
Rated Voltage	230 VAC
Terminal Type	Screw terminals
Thermal Test Current	10A
Actuator Type	Rod lever
Contact Material	Silver
Housing Material	Plastic, glass-fibre reinforced
Depth	52 mm
Height	111.5 mm
Weight	167 g
Width	40.5 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP65,IP67
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	52 mm L x 40.5 mm W x 111.5 mm H
