Specifications

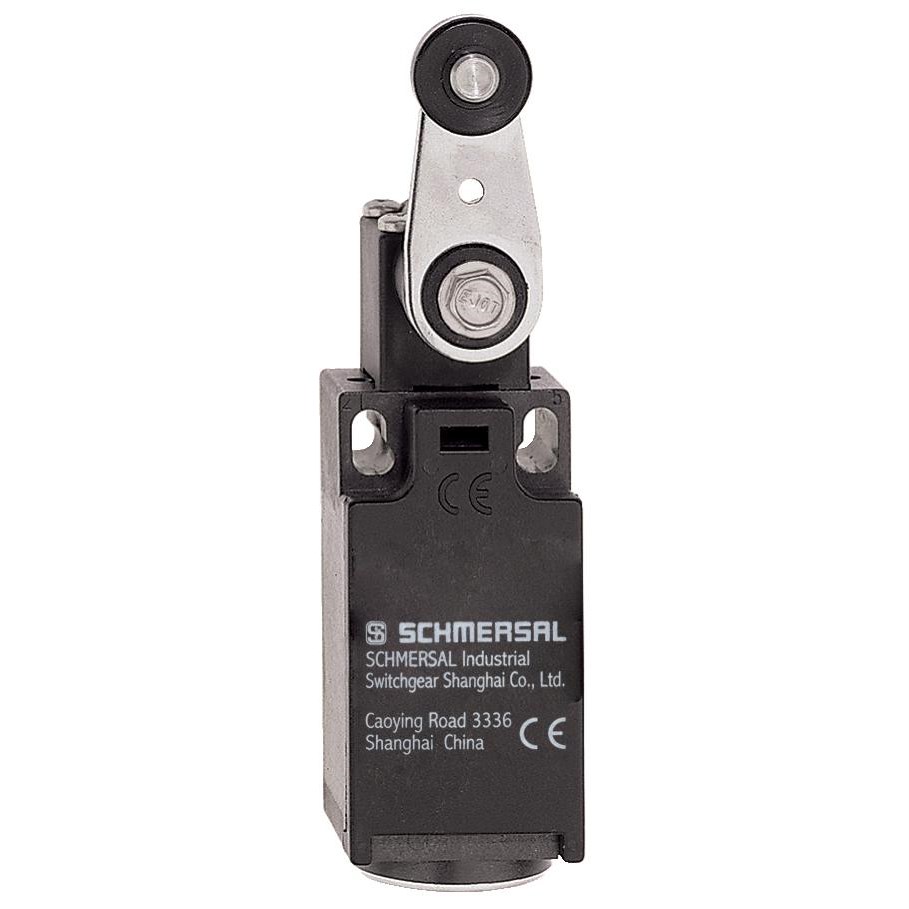

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO
Rated Current	4 A, 1 A
Rated Voltage	230 VAC, 24 VDC
Mechanical Durability	20000000 Cycles
Actuator Type	Roller Lever
Contact Material	Silver
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Operating Temperature	-30 to 80 deg C
IP Rating	IP67
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	46 mm L x 30 mm W x 112 mm H
