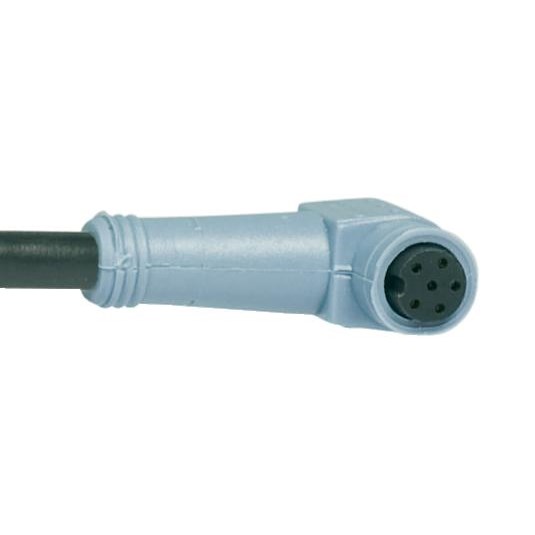

Schmersal 101206015 Pre-Wired Cable M8 Female 30 V 10m L Cable Grey

Product Code: 101206015

  • 30V rated voltage, 1500mA current capacity
  • M8 female connection type for secure fit
  • IP67 protection against dust and water
  • Operates in temperatures up to 80°C
  • Durable plastic and TPU construction
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Length (m) 10
Cable Diameter (mm) 4.85
No. of Cables 6
No. of Poles 6
Voltage Type DC
Rated Operational Voltage (V) 30V
Maximum Ambient Temperature (°C) 80
Thermal Test Current (A) 1.5
Minimum Ambient Temperature (°C) -40
Wire Cross Section (mm²) 0.14mm² (Diameter)
Connector Latching Type Latching Interlocking
Gland Material Plastic, TPU
Rated Operational Current (mA) 1500
Product Type Pre-Wired Cable
Brand SCHMERSAL
Cable Length 10 m
Colour Grey (Sheath)
Connection Type M8 Female
Connector Design Angled
Connector Type Female Connector M8 (Side A)
Degree of Protection IP67
Handle Colour Black
Handle Material Plastic, TPU
Jacket Colour Grey
Material Plastic, TPU
Operational Temperature 80 deg C
Rated Current 1500 mA
Rated Voltage 30 V
