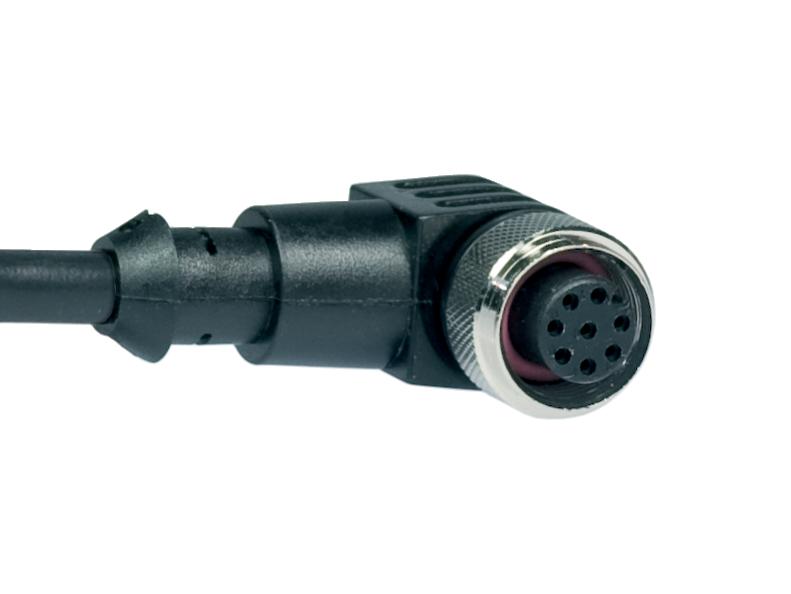

SCHMERSAL A-K8P-M12-S-W-5M-BK-1-X-A-4-69-VA SAFETY SENSOR 101210561

Product Code: 101210561

Enhance your machine safety with the Schmersal A-K8P-M12 safety sensor series. This robust pre-wired cable is designed for optimal performance in cable drag chain applications, featuring an angled orientation for seamless integration. Equipped with eight conductive wires and a 5-meter length, it ensures reliable connectivity with its M12 female connector. Trust in Schmersal's commitment to machine safety with this essential component in your safety sensor setup.

Technical Specifications

Colour Black (Sheath)
Handle Material Plastic, TPU
Handle Colour Black
Gland Material Metal, V4A
Minimum Ambient Temperature (°C) -30
Brand SCHMERSAL
Series A-K8P-M12
Maximum Ambient Temperature (°C) 105
Wire Cross Section (mm²) 0.21mm² (Diameter)
Connector Design Angled
Connector Latching Type Screw Locking
Connector Type Female Connector (Side A)
No. of Cables 8
No. of Poles 8
Rated Operational Current (mA) 2000
Rated Operational Voltage (V) 30V
Cable Diameter (mm) 5.7
Cable Length (m) 5
Thermal Test Current (A) 2
Tightening Torque (Nm) 0.4
Voltage Type DC
Degree of Protection IP67
Standards and Approvals EN IEC 61076-2-101
