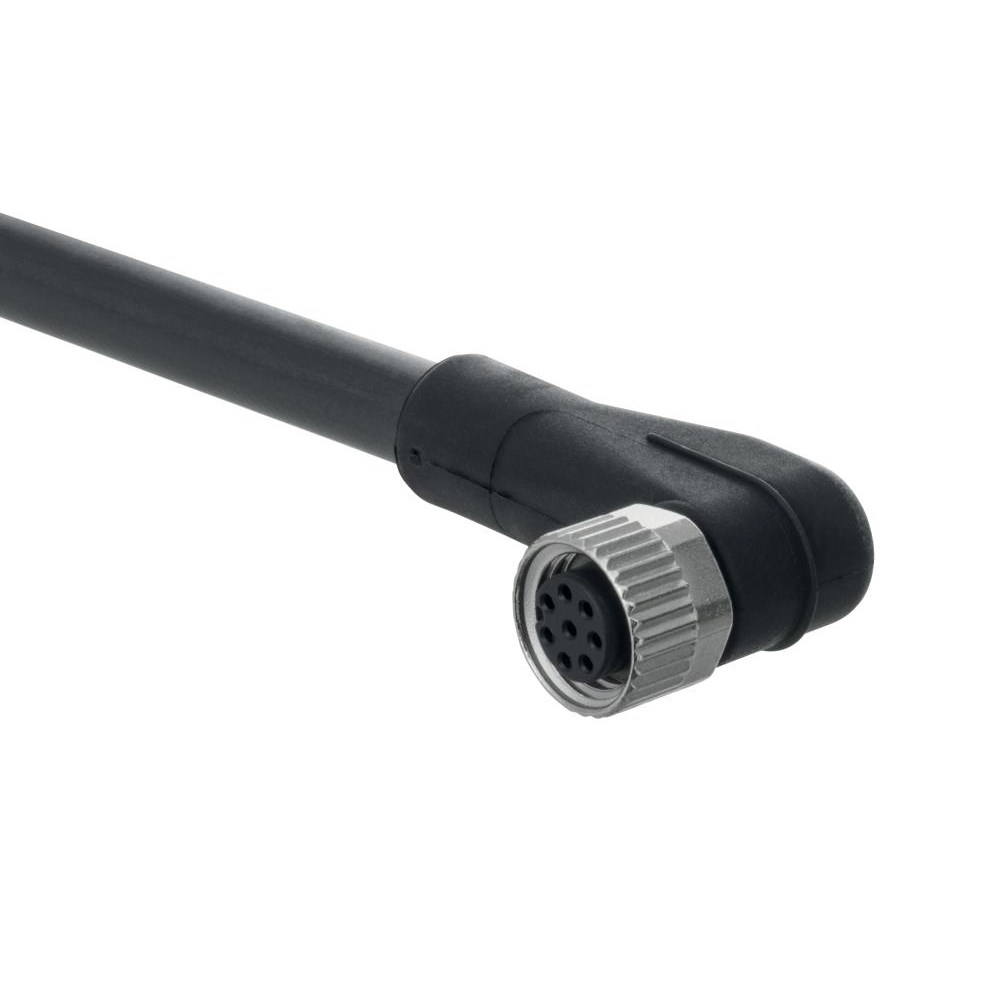

Schmersal 103003642 Pre-Wired Cable 30VAC/DC 2000mA Black Sheath

Product Code: 103003642

  • Supports 30 VAC/VDC, 2000 mA
  • High protection: IP65, IP67, IP69
  • Durable metal with CuZn, nickel-plated
  • Operates up to 90°C
  • Black sheath for easy identification
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Length (m) 5
Cable Diameter (mm) 6
No. of Cables 8
No. of Poles 8
Tightening Torque (Nm) 0.6
Voltage Type DC
Rated Operational Voltage (V) 30V
Maximum Ambient Temperature (°C) 90
Thermal Test Current (A) 1.5
Minimum Ambient Temperature (°C) -50
Wire Cross Section (mm²) 0.25mm² (Diameter)
Connector Latching Type Screw Locking
Gland Material Metal, CuZn, Nickel-plated
Rated Operational Current (mA) 1500
Product Type Pre-Wired Cable
Brand SCHMERSAL
Colour Black (Sheath)
Connector Design Angled
Connector Type Female Connector M8 (Side A)
Degree of Protection IP65, IP67, IP69
Halogen Free Yes
Handle Colour Black
Handle Material Plastic, PUR
Jacket Colour Black Sheath
Material Metal, CuZn, Nickel Plated
Operational Temperature 90 deg C
Rated Current 2000 mA
Rated Voltage 30 VAC/VDC
