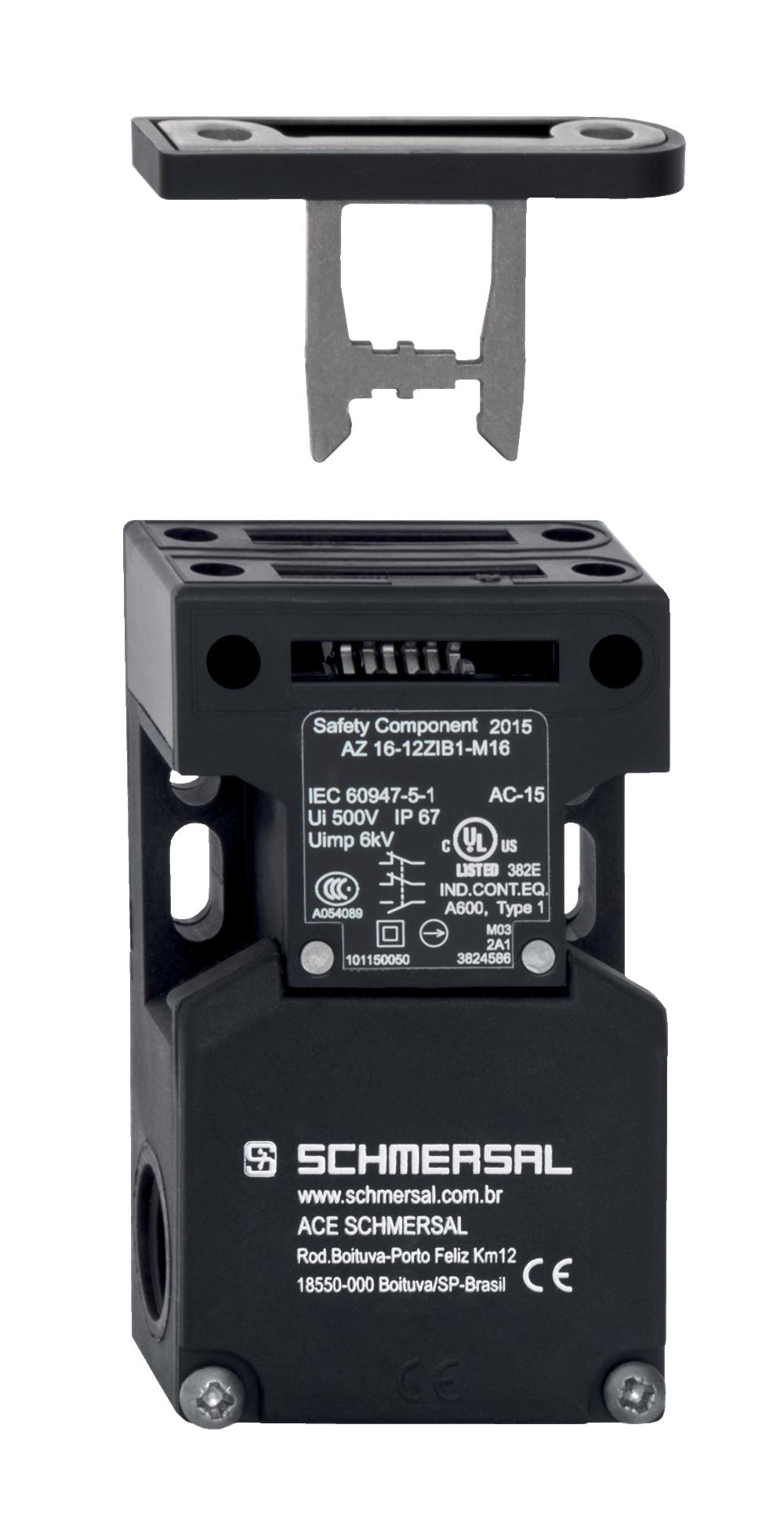

SCHMERSAL AZ 16-03ZIB1-M16-2177 SAFETY SWITCH WITH SEPARATE ACTUATOR 101150059

Product Code: 101150059

The Schmersal AZ16 Series safety switch is engineered for machine safety applications, featuring a robust thermoplastic enclosure with a centering guide and an ejection force mechanism. This switch is designed with a straight, rigid actuator and an actuating radius of 250 mm. It includes three safety contacts and utilizes screw terminals for secure connections. The switching element is an opener (NC) with a thermal test current of 10 A. For reliable performance across various applications, it meets the Utilisation category AC-15 with a rating of 230 VAC at 4 A and DC-13 at 24 VDC also at 4 A. This product ensures dependable operation in demanding industrial environments without auxiliary contacts.

Technical Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Brand SCHMERSAL
Degree of Protection IP67
Series AZ16
