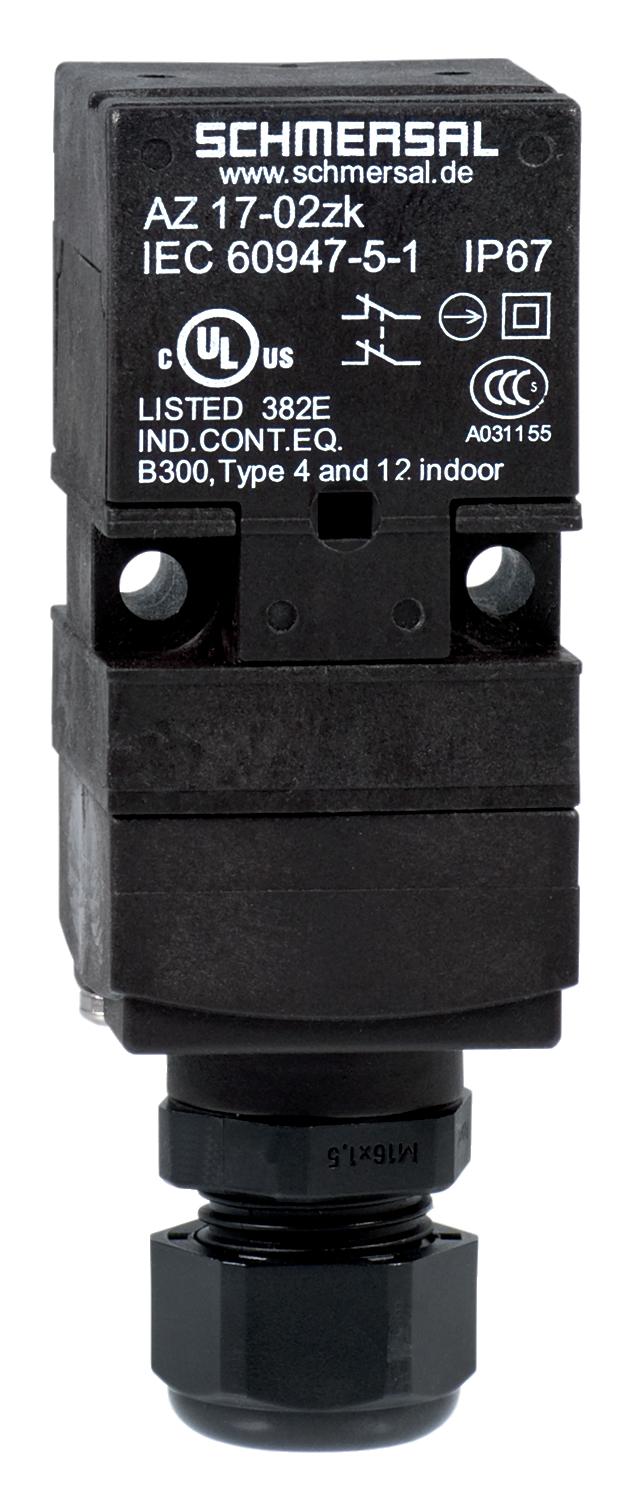

SCHMERSAL AZ 17-02ZRK-1637SAFETY SWITCHWITH SEPARATE ACTUATOR 101153121

Product Code: 101153121

Technical Specifications

Housing Material Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Brand SCHMERSAL
No. of Cable Glands 1
Cable Entry M16 x 1.5
Maximum Cable Cross Section (mm²) 1
Minimum Cable Cross Section (mm²) 0.75
Contact Material Gold-plated Silver (AgNi 15 + Au 0.3µm)
Latching Force (N) 30
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse
Minimum Mechanical Life 1000000 Operations
No. of Safety Contacts 2
Positive Break Travel (mm) 11
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Operational Current AC-15 (A) Safety Contacts - 4A
Rated Operational Current DC-13 (A) Safety Contacts - 4A
Rated Short-circuit Current (A) 1000
Switching Element Opener (NC)
Switching Frequency 2000/h
Switching Principle Slow Action, Positive Break NC Contact
Termination IDC Method of Termination
Thermal Test Current (A) 10
Sensor Length (mm) 30
Sensor Width (mm) 30
Sensor Height (mm) 60
Degree of Protection IP67
Pollution Degree 3
Standards and Approvals EN IEC 60947-5-1, EN ISO 13849-1
