Safety Interlocks

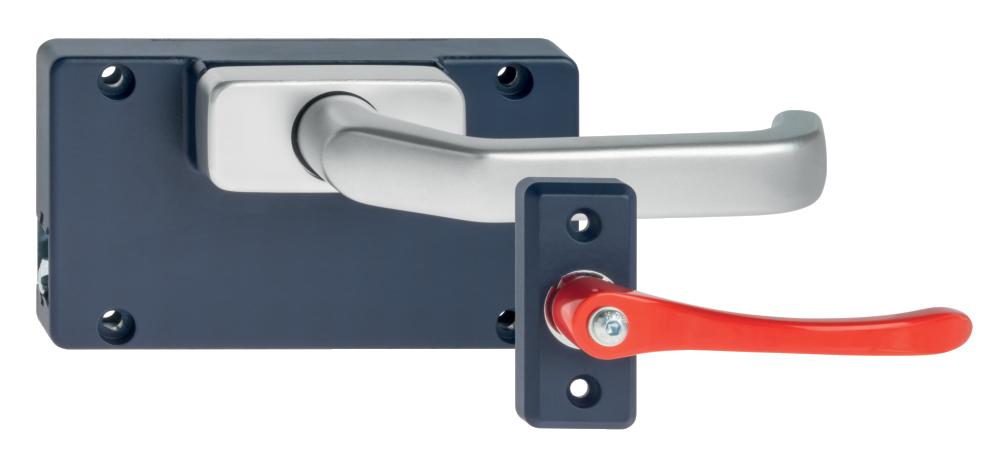

SCHMERSAL DOOR HANDLE ACTUATOR 101139958

Product Code: 101139958

Technical Specifications

Brand SCHMERSAL
Actuator Type Magnet
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-06-09
eCl@ss Number, Version 9.0 27-27-06-90
Enclosure Coating Material Painted
Enclosure Material Brass
ETIM 6.0 EC002591
ETIM 7.0 EC000200
Gross Weight (g) 3828.63
Height (mm) 75
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 2
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 240
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 5000000 Operations
Minimum Positive Break Force (N) 16
Mounting Type A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Net Weight (g) 55
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Overvoltage Category 3
Pollution Degree 3
Protection Class of Operating Resource 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 25
Sensor Length (mm) 30
Standards EN IEC 60947-5-1 / EN IEC 60947-1
Storage Temperature (°C) -25 to 70
Switching Element Normally open contact (NO)
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category AC-15
Utilisation Category DC-13 0.25 A
Wire Cross-Section 13 AWG
Working Principle Mechanical
