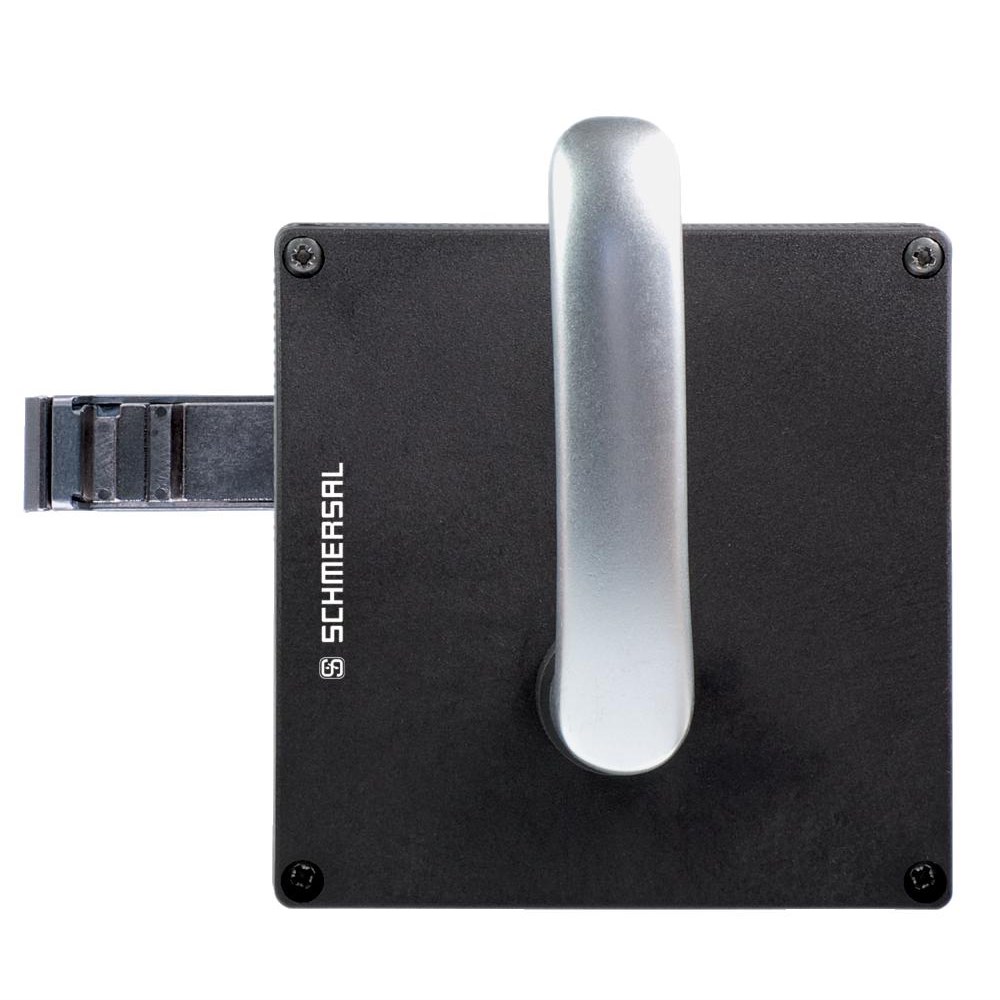

SCHMERSAL AZ/AZM201-B30-RTAG1 SOLENOID INTERLOCK 103013502

Product Code: 103013502

Enhance machine safety with the Schmersal AZM201 series solenoid interlock, designed for hinged guard applications. This robust actuator features a convenient handle grip and is suitable for right-hinged doors. Engineered for external mounting, it boasts compact dimensions of 60x115x115 mm, ensuring a seamless fit for your machinery's safety system requirements.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP66 / IP67
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-24-02
eCl@ss Number, Version 9.0 27-27-24-02
Enclosure Material Thermoplastic, Polyamide PA 6 GF
ETIM 6.0 EC002544
ETIM 7.0 EC002544
Gross Weight (g) 153
Maximum Ambient Temperature (°C) 60
Minimum Ambient Temperature (°C) -25
Net Weight (g) 150
Series AZM201
Standards EN ISO 13849-1
Terminal Type Connector M23, 8+1-pole
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
