SCHMERSAL AZ16-03ZI-B1-M16 SAFETY SWITCH WITH SEPARATE ACTUATOR 101150055

Product Code: 101150055

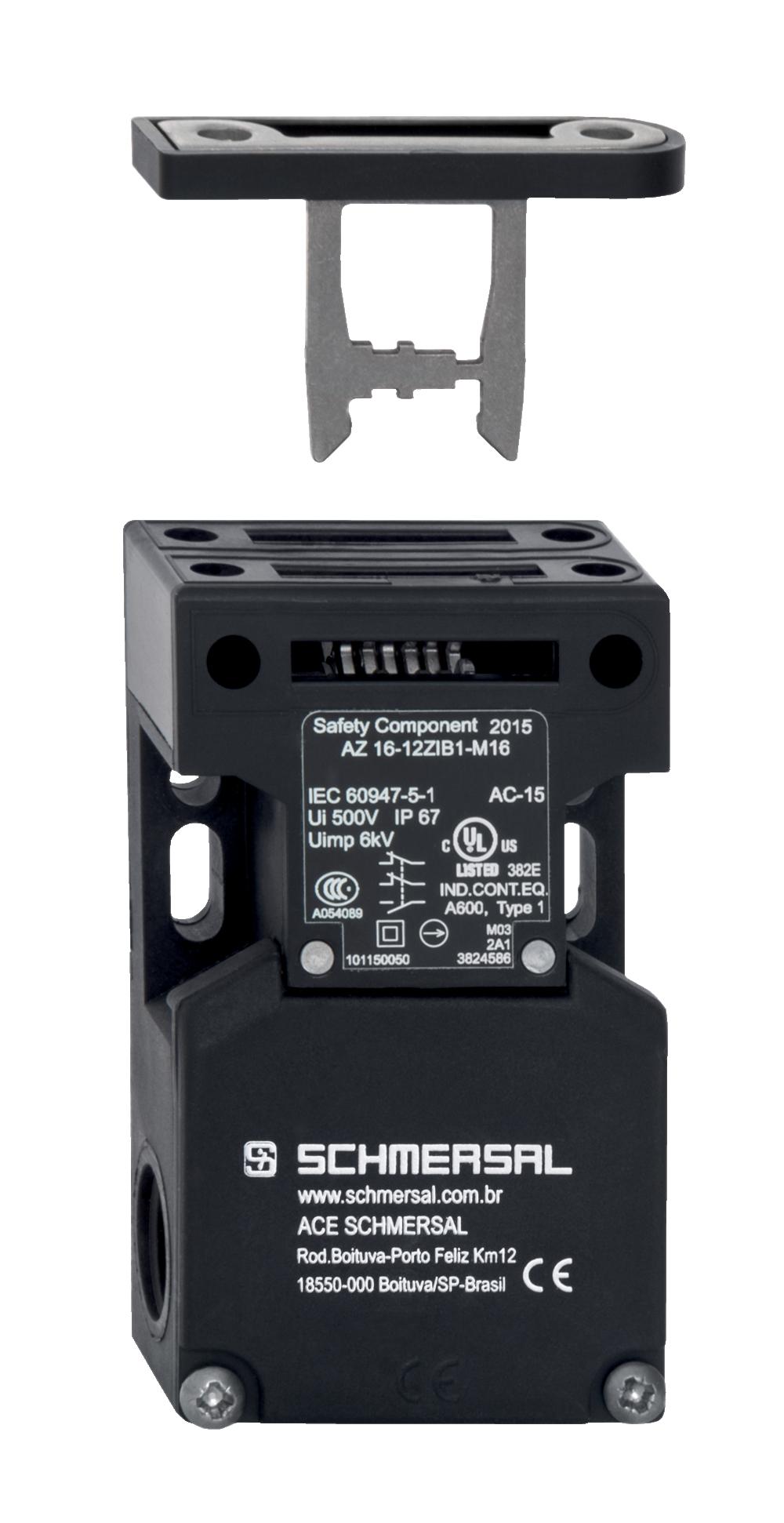

The Schmersal AZ16 Series safety switch is designed to enhance machine safety with its robust thermoplastic enclosure and separate actuator. This switch features a straight, rigid actuator with an actuating radius of 250 mm, ensuring reliable operation. It comes equipped with three safety contacts and no auxiliary contacts, utilizing a screw connection for secure terminal connectivity. The switching element is an opener (NC) with a thermal test current of 10 A. Optimized for various applications, it has a rated operational voltage of 230 VAC at 4 A for AC-15 and 24 VDC at 4 A for DC-13 categories. This high-performance safety switch is an essential component for any engineering project requiring precise safety measures.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Series AZ16
