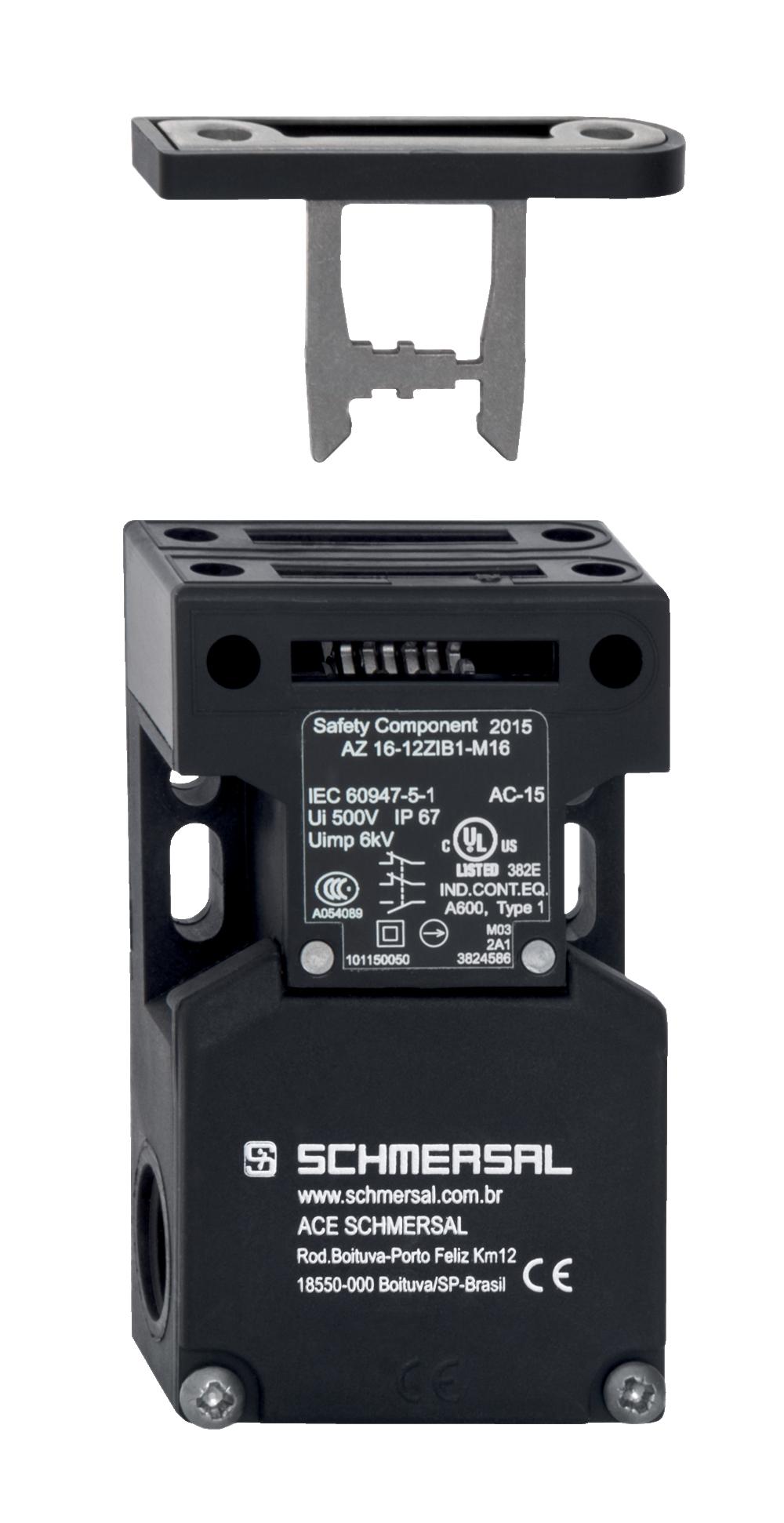

SCHMERSAL SAFETY SWITCH WITH SEPARATE ACTUATOR 101150637

Product Code: 101150637

Technical Specifications

Actuator Type Offset roller lever
Enclosure Material Aluminium
Gross Weight (g) 185
Net Weight (g) 1570
Wire Cross-Section 0.5 mm
Minimum Ambient Temperature (°C) -25
Brand SCHMERSAL
Working Principle Mechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-03
Coding Level According to EN ISO 14119 Low
ETIM 7.0 EC000222
ETIM 6.0 EC002593
eCl@ss Number, Version 11.0 27-27-24-04
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 2 x 0.75
Storage Temperature (°C) -25 to 70
Contact Material Silver
Maximum Actuating Speed (m/s) 0.3
Maximum Fuse Rating 4 A gG D-fuse
Minimum Actuating Speed (mm/min) 160
Minimum Mechanical Life 20000000 Operations
Minimum Positive Break Force (N) 15
No. of Auxiliary Contacts 2
No. of Safety Contacts 1
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Switching Element NO contact, NC contact
Switching Principle Snap action
Terminal Type Connector
Utilisation Category DC-13 | AC-15
Utilisation Category AC-15 1.5 A
Utilisation Category DC-13 0.05 A
Sensor Length (mm) 71.5
Sensor Height (mm) 25
Degree of Protection IP54
Standards EN IEC 61496-1 / CLC/TS 61496-2
